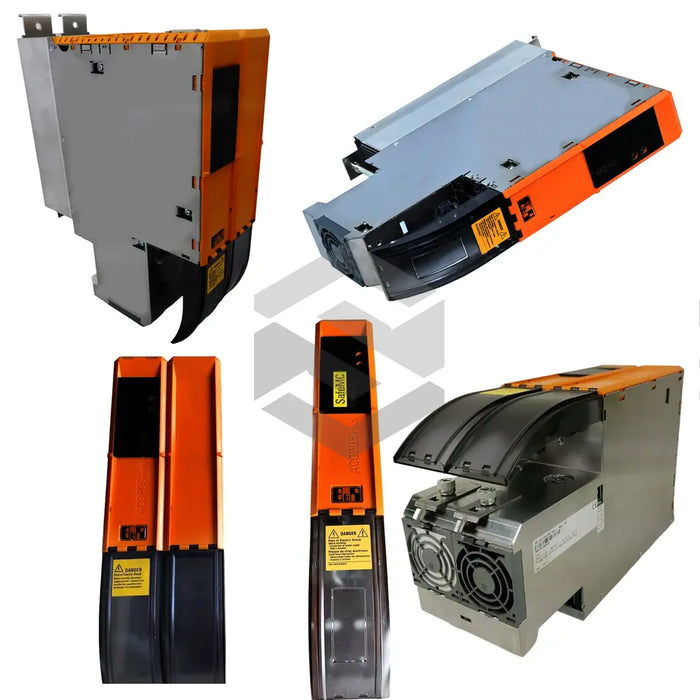

series image of 8BVI0110HWS0.000-1

8BVI0110HWS0.000-1

by B & R Automation
$4,580.59 - $4,580.59
$4,580.59
$4,580.59 - $4,580.59
$4,580.59
In Stock, Ships 1 - 2 Days
The 8BVI0110HWS0.000-1 power supply module, developed by B & R Automation, is engineered for reliability in commercial applications across various industries. Key features include its 10 kW power capacity and a wide input voltage range of 325 to 844 VDC, making it adaptable for high-performance tasks. This module excels in managing significant energy demands with a maximum capacity of 34.8 A and a rated current of 11.6 A, supported by a 250% overload capacity for 4 seconds. Integrated forced cooling ensures operational stability under stress. It is compact, measuring 105 x 330 x 245 mm and weighing 4.5 kg, allowing easy integration into existing systems. Compatibility with POWERLINK and EtherCAT strengthens its role in modern automation networks. The module features an IP20 rating, offering dust protection, and operates effectively in diverse conditions with a storage temperature range of -25°C to 70°C.
30 Day Warranty
Technical Specifications
  • Manufacturer: B & R Automation
  • Product Number: 8BVI0110HWS0.000-1
  • Product Type: Power Supply Module
  • Series: 8BVI
  • Power Output: 10 kW
  • Input Voltage Range: 325 to 844 VDC
  • Maximum Current Capacity: 34.8 A
  • Rated Current: 11.6 A
  • Overload Capacity: 250% for 4 seconds
  • Cooling Method: Integrated Forced Cooling
  • Storage Temperature Range: -25 to 70 degrees C
  • Communication Protocols: POWERLINK, Ether CAT
  • Dimensions: 105 x 330 x 245 mm
  • Weight: 4.5 kg
  • IP Rating: IP20
