8CCH0001.11110-1

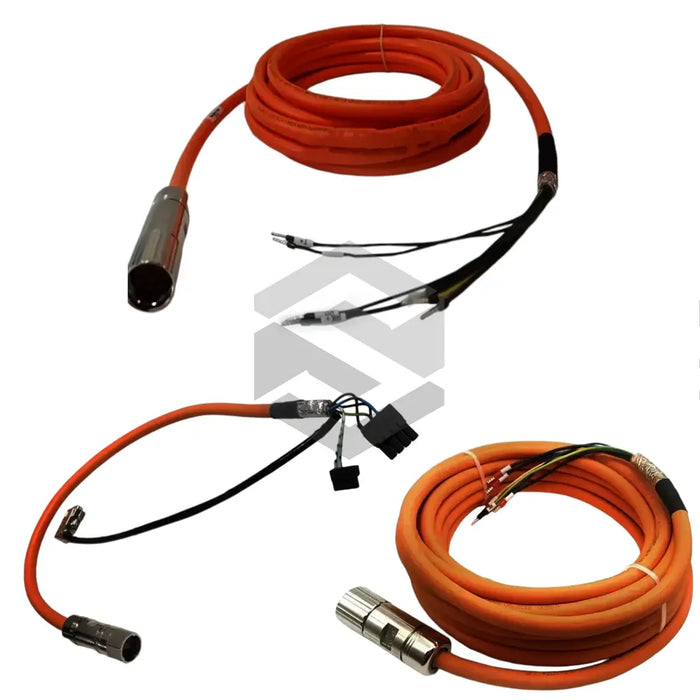

The 8CCH0001.11110-1 motor cable from B & R Automation is a key member of the CM16 Motor Cables series, engineered to meet rigorous industrial automation demands. This 1 meter cable features an Aluminum Alloy construction with a Powder-coated finish (Finish), ensuring exceptional durability in harsh environments. Rated IP20 (Ip Rating), it offers basic protection against solid objects while maintaining a lightweight profile of just 12 grams (Weight). Fully compliant with RoHS Compliance and Reach Compliance, the cable operates reliably across a broad Operating Temperature range from –40 °C to +80 °C, and is secured via a Screw Mount (Mounting Type) for straightforward installation.
Housing a 15-pin TYCO connector, the cable’s technical architecture supports comprehensive control and data transmission in a single assembly. The core structure incorporates filler elements wrapped in a foil and braid shield (Shield Type) providing over 85% shield coverage (Shield Coverage) and high immunity to electromagnetic interference. Power distribution is handled by 5 × 2.5 mm² tinned copper stranded lines (Power Lines) with a conductor resistance of ≤ 48 Ω/km (Conductor Resistance), ensuring low energy loss over extended runs. Signal control is delivered via 2 × 2 × 0.75 mm² cores (Signal Lines), while data communication employs 2 × 2 × 0.34 mm² conductors (Data Lines) braided into a 4-conductor assembly color-coded to the VZN (Cat. 5) standard (Data Conductors).
Operational features of the 8CCH0001.11110-1 motor cable emphasize both flexibility and reliability in confined or dynamic installations. The outer diameter of 14.6 mm ± 0.4 mm ensures compatibility with standard cable routing paths, and a minimum single bend radius greater than 60 mm (Minimum Bend Radius) allows tight routing without risking damage. The combination of a sturdy aluminum alloy jacket (Material) and robust shielding maintains signal integrity in electrically hostile environments, while the tinned copper braid further bolsters mechanical stability. Rated for up to 1000 V working voltage on all cores, the cable delivers consistent performance under high-voltage conditions, making it ideal for motor-driven systems.
Integration of the 8CCH0001.11110-1 cable into automation platforms is seamless, thanks to its standardized 15-pin female TYCO interface and screw mount design. It pairs directly with CM16 motor modules and control units, simplifying system assembly and maintenance. Its multi-purpose conductor layout supports simultaneous power, signal, and data paths, reducing the need for multiple discrete cables and minimizing panel clutter. From machine tools to conveyor systems and robotic cells, this cable provides a robust, single-cable solution for state-of-the-art industrial automation applications.
