8DI330.D90457100-1

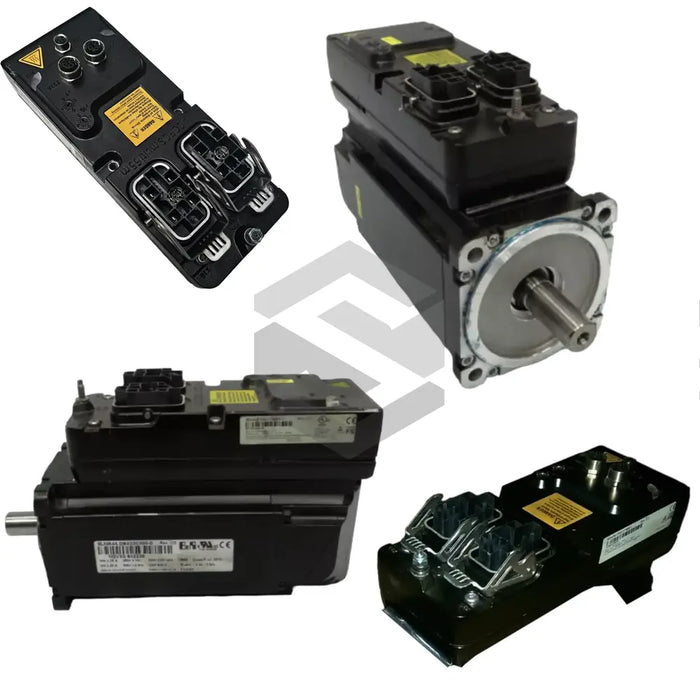

The 8DI330.D90457100-1 by B & R Automation is a high-performance integrated servo motor in the 8DI ACOPOS Motors series, engineered for industrial automation. This compact unit combines a built-in drive and an internal encoder to deliver real-time feedback and precise motion control. It supports three-phase output up to 480 VAC at dual frequencies of 50/60 Hz, making it suitable for global installations without modification. Constructed from durable aluminum, the motor maintains a lightweight profile while ensuring robust long-term performance. The bolt mounting design provides a stable, low-profile footprint that streamlines machine integration and reduces setup time.
Technical capabilities of the 8DI330.D90457100-1 highlight its advanced electrical and safety architecture. The motor delivers a rated nominal speed of 4500 rpm and is driven by a POWERLINK real-time Ethernet interface with an Additional POWERLINK Connection for network redundancy. It features 2 Number of 24VDC Outputs for peripheral control and leverages EnDat 2.2 Encoder Technology with Multi-turn functional safety encoding for seamless position tracking. Integrated Safe Torque Off (STO) safety functions and a Hardwired safety technology level comply with stringent industrial standards. The Configuration Version 1 firmware ensures broad compatibility with B&R’s automation controllers.
Operational features emphasize reliability, efficiency, and ease of maintenance. The motor’s Natural convection or forced air cooling method adapts to varying duty cycles, while EN 60068-2-6 compliant vibration resistance ensures durability in harsh environments. Although Holding Brake Equipped: No, the robust Fastening Type: Bolt Mount secures the motor firmly in place under dynamic loads. A Fixed Value: 0 parameter simplifies commissioning by defaulting non-critical settings, and the Module Length Code 3 and Module Size Code 3 dimensions maintain a balanced form factor. No Special Shaft Option is required for standard applications, reducing configuration complexity and spare parts inventory.
Integration of the 8DI ACOPOS motor into larger systems is straightforward, thanks to its native POWERLINK (real-time Ethernet-based protocol) communication interface and internal multi-turn encoder feedback. The motor’s combination of built-in drive electronics, safety features, and standardized mounting supports seamless pairing with B&R Automation’s X20 and X67 control modules. Ideal for packaging machines, conveyor systems, robotic handling, and other high-precision motion applications, the 8DI330.D90457100-1 delivers a compact, all-in-one solution that reduces panel space, cabling complexity, and commissioning time.
