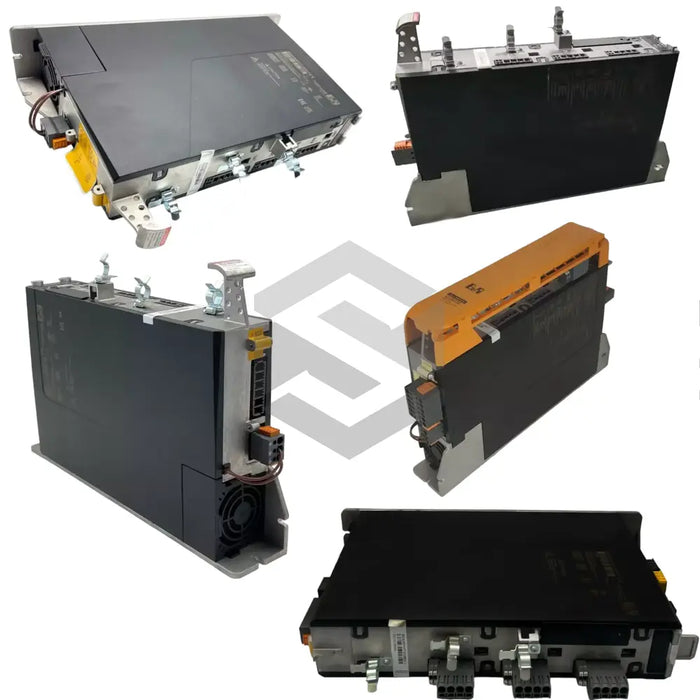

S image of 8EI017HWS10.0600-1

8EI017HWS10.0600-1

by B & R Automation
$5,263.67 - $13,522.18
$5,263.67
$5,263.67 - $13,522.18
$5,263.67

The B & R Automation 8EI017HWS10.0600-1 drive from the 8EI Servo Drives series delivers robust performance for industrial automation applications. This 1-axis module features 1 slot for plug-in modules and supports a mains input voltage of 3x 200-480 VAC at 50/60 Hz ~4%. It provides an installed load of up to 18 kVA with an inrush current of Max. 50 A, continuous current of 17 Aeff, and a DC bus connection continuous power rating of 8.5 kW. The drive includes an internal braking resistor, hardwired STO safety technology with encoder, and supports TN-S or TN-C-S network configurations with grounded neutral. Designed for wall mounting with wire end sleeve terminals (0.25–4 mm²) and up to 3 m cable length, it weighs 4 kg and allows both horizontal and vertical orientations at altitudes up to 500 m.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Module Type

1-axis module

Connector Set 2 (2-row)

No

Internal Braking Resistor

Yes

Continuous Current

17 (Aeff)

Available as 3-axis module

No

Customization

No customized options

Module Option

Standard (no module-specific option)

Mounting

Wall mounting

Plug-in Module Type

No plug-in module included in delivery

Product Series

ACOPOS P3 8EI servo drive

Safety Option

Hardwired STO safety technology with encoder

Voltage

3x 200-480 VAC

Network configurations

TN-S, TN-C-S with grounded neutral

DC bus connection, Continuous power

8.5 kW

Slots for plug-in modules


1

Inrush current

Max. 50 A

Frequency

50/60 Hz ~4%

Max Load Current

200 mA
