8EI022HWD10.0100
Original price
$16,705.87
-
Original price
$16,705.87
Original price
$16,705.87
$16,705.87
-
$16,705.87
Current price
$16,705.87

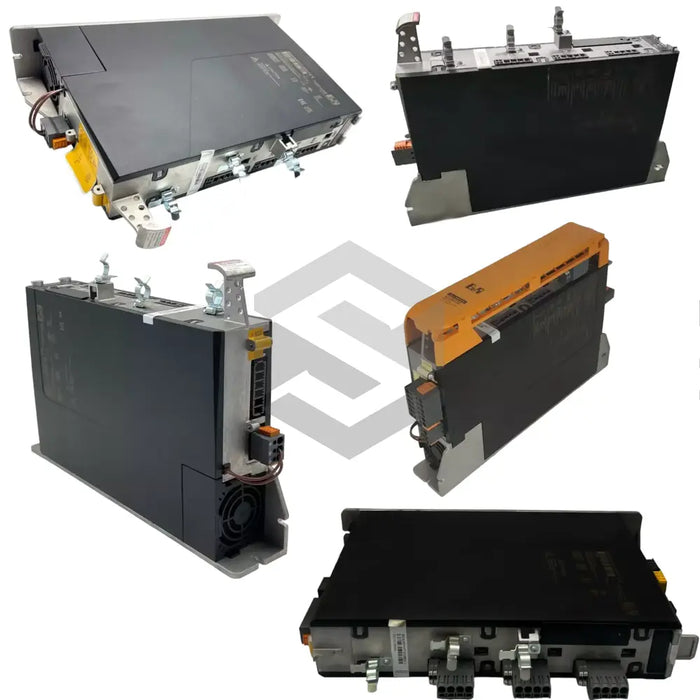

The B&R Automation ACOPOS P3 servo drive, model 8EI022HWD10.0100, is engineered for precision motion control in industrial settings. Compatible with three-phase input voltages ranging from 200 VAC to 480 VAC, it can manage a load of 5 kVA and operates at 50-60 Hz, withstanding inrush currents up to 45 A. Its 470 uF DC bus capacitance enhances voltage stability and performance. The drive integrates a 24 VDC power supply that tolerates a 25% voltage variation, drawing 1.2 A of current. Supporting two motors, it delivers 1 kW of continuous power and 2.2 A of continuous current per motor. It maintains operational stability across frequencies of 5 kHz, 10 kHz, and 20 kHz, regardless of elevation. Safety features include overload, short circuit, and ground fault protections. The unit supports braking systems with capacities of 7 kW and 25 kW, offering robust stopping power. The EnDat 2.2 encoder interface ensures high-precision tasks with encoder cable lengths up to 100 meters.
30 Day Warranty
Technical Specifications
Get In Contact
Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204
