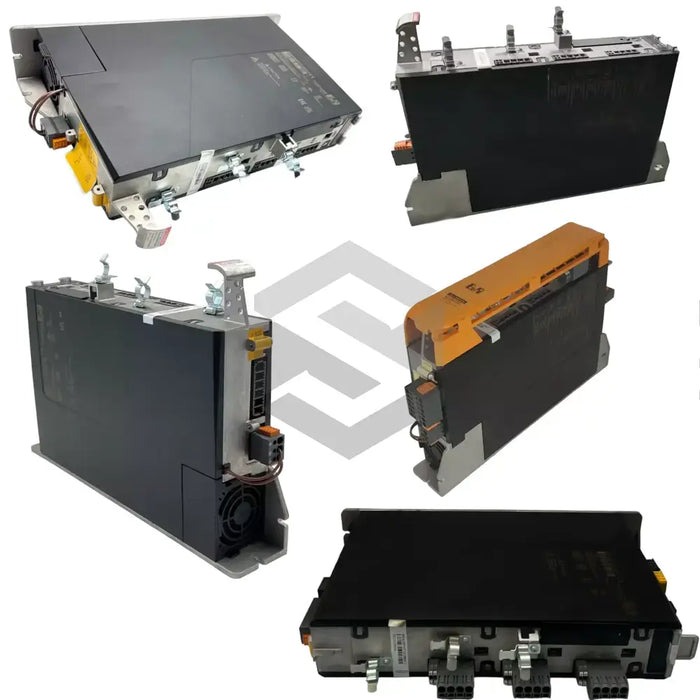

8EI2X2HWS10.A600-1
The 8EI2X2HWS10.A600-1 servo drive module is produced by B&R Automation for the 8EI Servo Drives series. It belongs to the ACOPOS P3 8EI platform and is installed in industrial cabinets to regulate motor torque, speed, and position on automated equipment. In service, it works as the power and control stage between the machine controller and the connected servo motor. The module exchanges real-time data with the machine CPU over the system backplane, which helps keep coordinated motion groups synchronized in packaging, printing, and material-handling systems. That arrangement supports repeatable motion profiles and coordinated axis behavior during continuous machine cycles.
Electrically, the drive accepts a line supply of 3x 200–480 VAC, allowing direct connection to common factory power grids without external transformers. Under these conditions, it can deliver a continuous phase current of 2.2 Aeff, which supports steady motor operation within the rated load range. Safety circuits can be wired directly to the unit because it includes hardwired STO safety technology with encoder support, allowing torque shutdown through dedicated safety wiring. Deceleration energy is handled by an internal braking resistor, which reduces the need for separate braking hardware on low-inertia axes. Motor feedback is connected through the dedicated 1x resolver interface for resolver-based position and speed signals.
This version is supplied as a 1-axis module, making it suitable for machines that need one controlled servo axis in a compact cabinet layout. The housing is intended for wall mounting, which allows cooling air to move across the heat sink surfaces when proper clearance is provided. A single-row connector set is included, and a front cover protects the terminals from incidental contact while keeping the connection area organized. Its cabinet-mounted format also supports orderly routing of power, feedback, and safety wiring where multiple motion components share the same enclosure.
