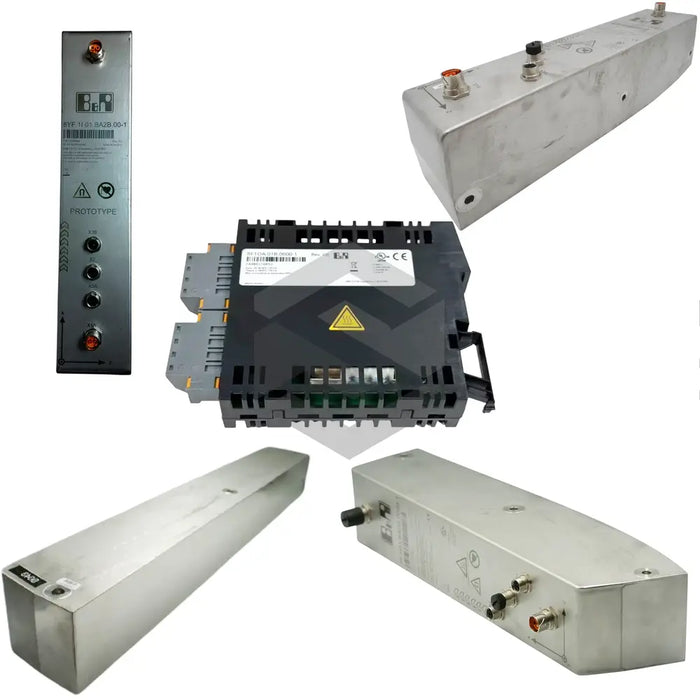

8F1OA.01B.0000-1
The 8F1OA.01B.0000-1 from B & R Automation is a high-precision transport module in the ACOPOStrak Systems series, designed for seamless integration into advanced industrial automation lines. Constructed with an Anodized Aluminum body, it features a Total Mechanical Stroke of 106 mm and an Effective Electrical Stroke of 100 mm to deliver extended travel in a compact form factor. The module operates on a Nominal Supply Voltage up to 60 VDC with a Resistance of 5 kΩ ±20%, ensuring compatibility with a wide range of control architectures. A Connector Type 3-pin DIN 43322 enables straightforward power and signal connections, while the Protection Class IP40 rating safeguards internal components during indoor mounting. Its Operating Temperature Range of -30 °C to +100 °C allows reliable performance in varying environmental conditions.
Performance is optimized through precision motion and control characteristics: the unit offers a Repeatability of <0.01 mm> and Independent Linearity of ~0.05% for exact positioning. Long-term reliability is supported by Permissible Long term storage parameters that minimize drift over extended downtimes. A Maximum Wiper Current of 10 mA ensures low-power sensing without sacrificing accuracy. The internal 25 A gR-class fuse adds a layer of fail-safe protection, easily replaceable to minimize downtime. Output interfaces deliver up to 59.6 V and 16.6 A, with maximum power dissipation of 4.5 W at the output stage—allowing high-speed operation with minimal thermal buildup. Cable runs up to 15 m facilitate flexible layout and modular expansion across the production floor.
Integration is simplified by vertical indoor mounting requirements and nominal installation heights between 0 and 500 meters, with extended operation possible at altitudes up to 4,000 meters. The module’s design supports five key safety functions including Safety Limited Speed, Safe Torque Off, and Safe Maximum Speed, ensuring fast response times and collaborative operation near personnel. Backed by a 12-month warranty, the ACOPOStrak 8F1OA.01B.0000-1 provides dependable motion control for applications in packaging, assembly, material handling, and pick-and-place systems. Its robust construction, combined with intelligent electronic safeguards, makes it an ideal choice for next-generation automated production lines.
