S image of 8I64T400300.000-1

8I64T400300.000-1

by B & R Automation
$4,403.09 - $4,843.40
$4,403.09
$4,403.09 - $4,843.40
$4,403.09

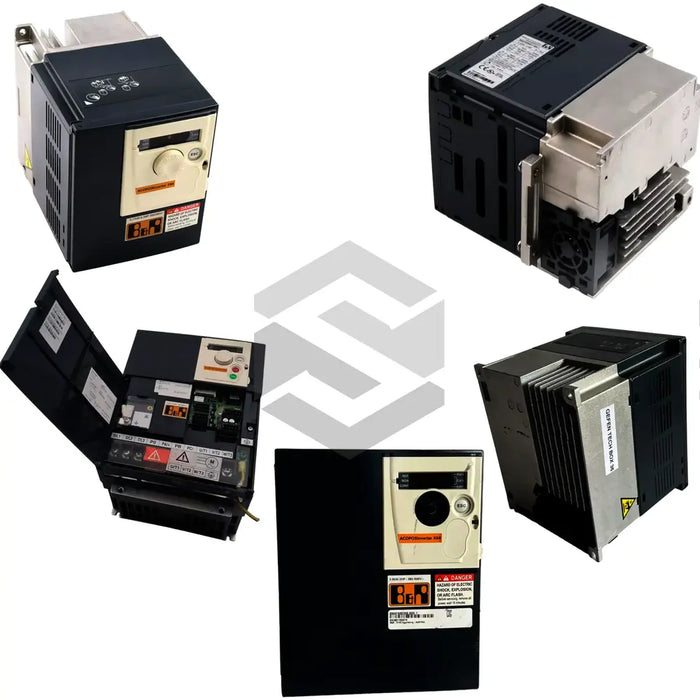

The 8I64T400300.000-1 inverter from B & R Automation in the 8I6 ACOPOS Inverters series offers reliable performance. It features an integrated braking chopper, EMC filters for IEC/en61800-3 category C2 and C3, and an integrated X2X link. The module supports sensorless flux vector control with adjustable switching frequencies from 2 to 16 kHz and output frequencies from 0.5 to 500 Hz. It delivers continuous braking torque at 100% and can provide transient overtorque up to 200%.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Braking Torque - With Braking Resistor

100% of nominal motor torque continuously and up to 150% for 60 s

Braking Torque - Without Braking Resistor

% of nominal motor torque (typical value): 150%, 100%, 50%, 30%

Integrated Braking Chopper

Yes

Integrated Emc Filter Iec/en61800-3 Category C2

Yes

Power Supply

Single phase 200 -15% to 240 +10% VAC, 50 to 60 Hz ~5%; Three phase 200 -15% to 240 +10% VAC, 50 to 60 Hz ~5%; Three phase 380 -15% to 500 +10% VAC, 50 to 60 Hz ~5%

Switching Frequency

2 to 16 kHz, 4 kHz nominal

Transient Overtorque

170 to 200% of nominal motor torque (typical value)
