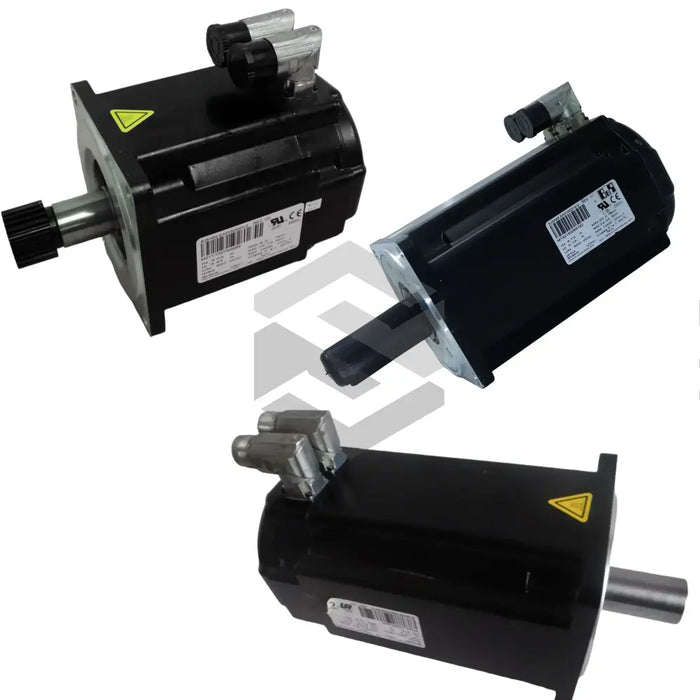

S image of 8JSA22.E5B35D700-0

8JSA22.E5B35D700-0

by B & R Automation
$0.00 - $0.00
Request a Quote
$0.00 - $0.00
Request a Quote

Request a quote

Add a Message

The 8JSA22.E5B35D700-0 is a synchronous motor manufactured by B & R Automation as part of the 8JS Synchronous Motors series. This three-phase motor delivers 528 W nominal power at a nominal speed of 8000 rpm with a nominal torque of 0.63 Nm and a maximum torque of 3.1 Nm. It operates at 1.04 A nominal current, features a keyed shaft (D7) option and an optical EnDat encoder with 13-bit single-turn resolution, and weighs 1.1 kg (without brake), providing compact, precise drive solutions for industrial automation.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Maximum Torque

3.1 Nm

Motor Series

8JSA2 three-phase synchronous motor

Nominal Current

1.04 A

Nominal Power

528 W

Nominal Speed

8000 rpm

Nominal Torque

0.63 Nm

Number Of Pole Pairs

3

Shaft End Option

Keyed shaft (D7 option)

Stall Torque

0.84 Nm

Stator Inductance

35.5 mH

Stator Resistance

19.98 Ω

Torque Constant

0.61 Nm/A

Voltage Constant

39 V/1000 rpm

Weight (without Brake)

1.1 kg
