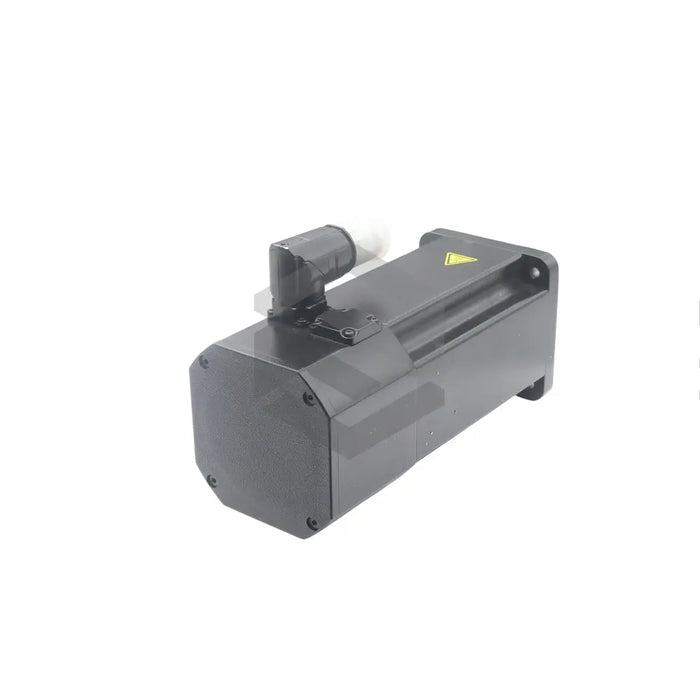

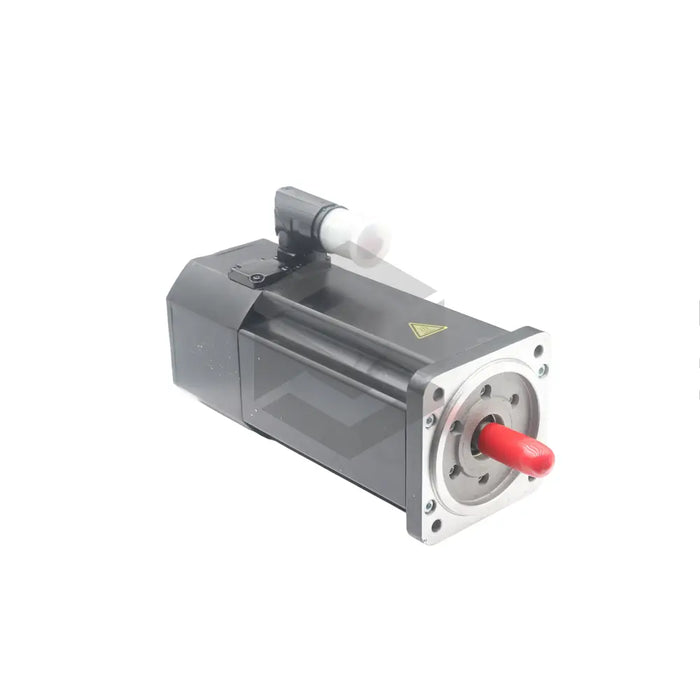

S image of 8LSA35.DA030S000-3

8LSA35.DA030S000-3

by B & R Automation
$3,317.75 - $5,732.75
$3,317.75
$3,317.75 - $5,732.75
$3,317.75

Available, Shipping Varies

The 8LSA35.DA030S000-3 servo motor by B & R Automation is a high-performance synchronous motor tailored for precise motion control in demanding environments. It operates at 3000 rpm with a stall torque of 2.300 Nm, making it suitable for precision applications. With four pole pairs and a 560 VDC operational voltage, it ensures stable and consistent power delivery. The motor's design includes a swivel SCS connection for flexible integration and a self-cooling mechanism for continuous operation, classified as type A. Its IP64 rating provides protection against dust and water splashes. A single cable connection simplifies installation. Equipped with a DA 2.2 inductive 32-line single-turn encoder (EnDat), it offers accurate position feedback. Though it lacks an oil seal and brake holding torque, it is optimized for dynamic movements. Designed with an 80 mm centering diameter and 0.38 kgcm² moment of inertia, this motor excels in specialized applications requiring precise, efficient performance.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

B & R Automation

Model

8LSA35.DA030S000-3

Motor Type

Synchronous Servo Motor

Nominal Speed

3000 rpm

Stall Torque

2.300 Nm

Pole Pairs

4

Connection Direction

Swivel SCS

Cooling Mechanism

Self-cooling

Type

A

Protection Class

IP64

Centering Diameter

80 mm

Operating Voltage

560 VDC

Encoder Type

DA 2.2 Inductive 32-line Single-turn (EnDat)

Single Cable Solution

Yes

Oil Seal

No

Brake System Holding Torque

0.00 Nm

Brake Mass

1.09 kg

Moment of Inertia

0.38 kgcm^2
