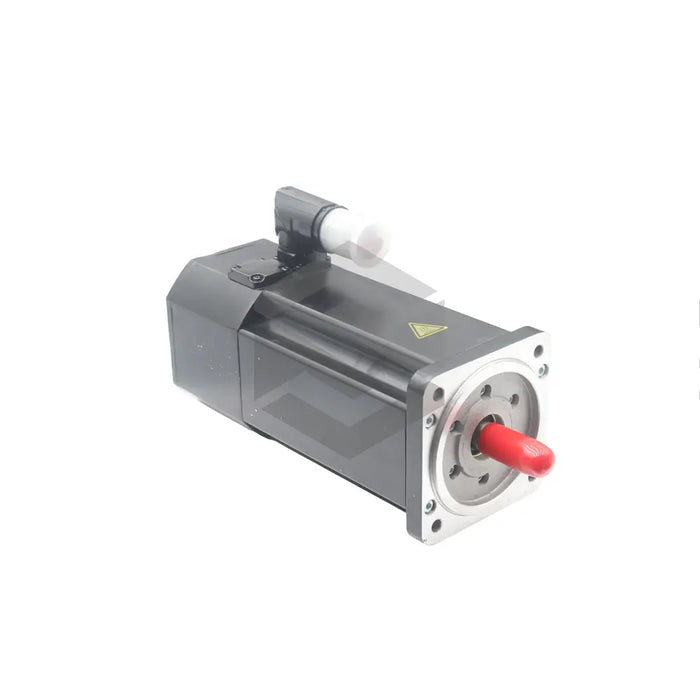

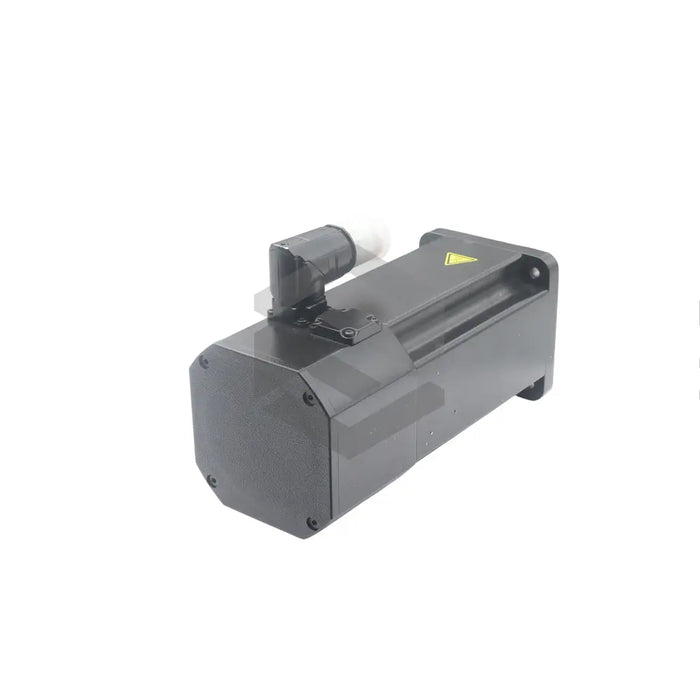

series image of 8LSA35.DB030S100-3

8LSA35.DB030S100-3

by B & R Automation
$7,702.11 - $7,702.11
$7,702.11
$7,702.11 - $7,702.11
$7,702.11
In Stock, Ships 3 - 5 Days
The 8LSA35.DB030S100-3 servo motor, designed by B & R Automation, is a precision-engineered solution for applications requiring exact motion control. Operating at a nominal speed of 3000 RPM with four pole pairs, it produces a nominal torque of 2.1 Nm and a power output of 660 W, with a nominal current of 1.4 A. The motor can deliver a stall torque of 2.3 Nm at 1.6 A and a maximum torque of 9.2 Nm at speeds up to 9000 RPM. It has a torque constant of 1.45 Nm/A and a voltage constant of 87.96 V/1000 RPM. The stator's resistance is 12.22 Ohm and inductance is 63 mH, resulting in a 5.2 ms electrical time constant for rapid response. With dimensions supporting quick accelerations and a thermal time constant of 34 minutes, it maintains stability under continuous operation. The motor weighs 4.4 kg and offers an optional brake system.
30 Day Warranty
Technical Specifications
  • Manufacturer: B & R Automation
  • Product: 8LSA35.DB030S100-3 Servo Motor
  • NominalSpeed: 3000 RPM
  • PolePairs: 4
  • NominalTorque: 2.1 Nm
  • PowerOutput: 660 W
  • NominalCurrent: 1.4 A
  • StallTorque: 2.3 Nm
  • StallCurrent: 1.6 A
  • MaximumTorque: 9.2 Nm
  • MaximumSpeed: 9000 RPM
  • MaximumCurrent: 6.8 A
  • TorqueConstant: 1.45 Nm/A
  • VoltageConstant: 87.96 V/1000 RPM
  • StatorResistance: 12.22 Ohm
  • StatorInductance: 63 mH
  • ElectricalTimeConstant: 5.2 ms
  • ThermalTimeConstant: 34 minutes
  • MomentOfInertia: 0.9 kgcm^2
  • WeightWithoutBrake: 4.4 kg
  • BrakeHoldingTorque: 0 Nm
  • BrakeMass: 1.09 kg
  • BrakeMomentOfInertia: 0.38 kgcm^2
