S image of 8LSA35.DB030S300-3

8LSA35.DB030S300-3

by B & R Automation
$1,989.70 - $6,519.76
$1,989.70
$1,989.70 - $6,519.76
$1,989.70

In Stock, Ships 1 - 3 Days

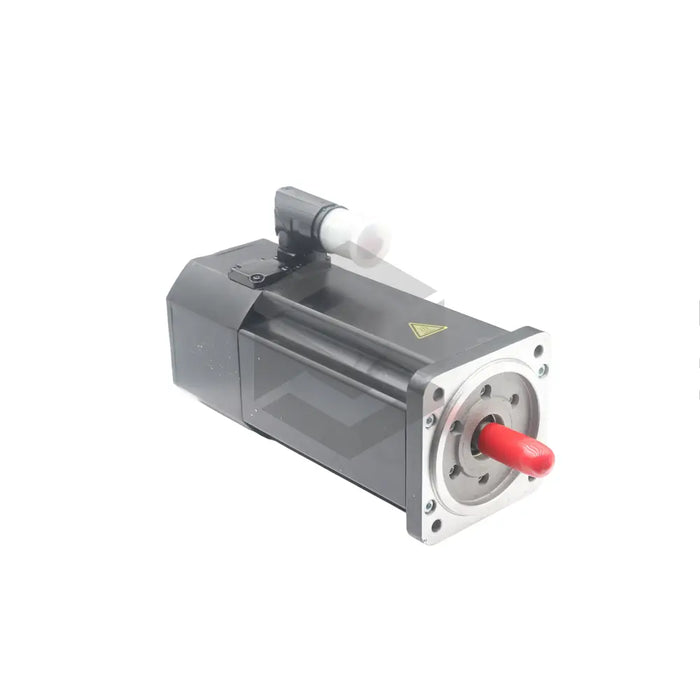

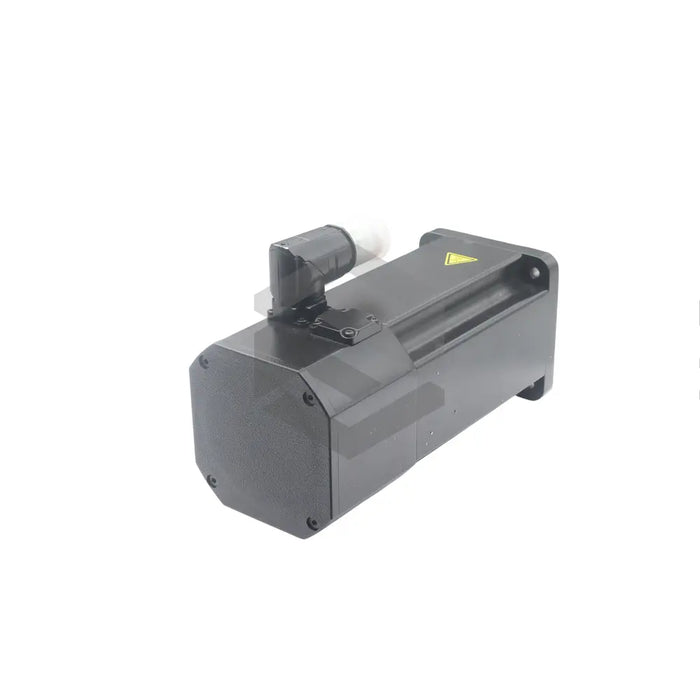

The 8LSA35.DB030S300-3 is a high-performance synchronous servo motor from B & R Automation, engineered for precision in motion control applications. Operating at a rated speed of 3000 RPM with a rated torque of 1.95 Nm and a peak torque of 5.6 Nm, this motor is ideal for demanding industrial environments. It operates on a 400 V power source, delivering a rated output of 0.61 kW, and features natural cooling to sustain performance without external cooling systems. With an IP65 protection rating, it is dust-tight and resistant to water ingress. Weighing 3.9 kg, with a system inertia of 0.049 kgm², the 8LSA35.DB030S300-3 ensures precise dynamic control and features a resolver offering 2.1 multi-turn feedback for accurate position and speed data. The polyester powder coating and resistance to relative humidity levels from 5% to 95% enhance its durability against environmental factors. Installation by a qualified technician is imperative for optimal performance and safety.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

B & R Automation

Model

8LSA35.DB030S300-3

Type

Synchronous Servo Motor

Rated Speed

3000 RPM

Rated Torque

1.95 Nm

Maximum Torque

5.6 Nm

Power Source

400 V

Rated Output

0.61 kW

Cooling System

Natural Cooling

Protection Rating

IP65

System Inertia

0.049 kgm^2

Coating

Polyester Powder RAL 9005

Feedback Type

Resolver with 2.1 multi-turn

Weight

3.9 kg

Relative Humidity Range

5% to 95%
