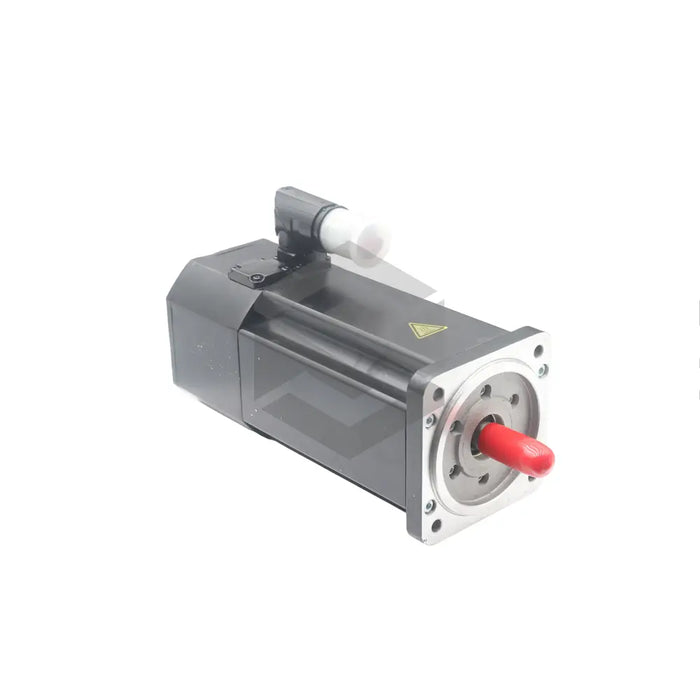

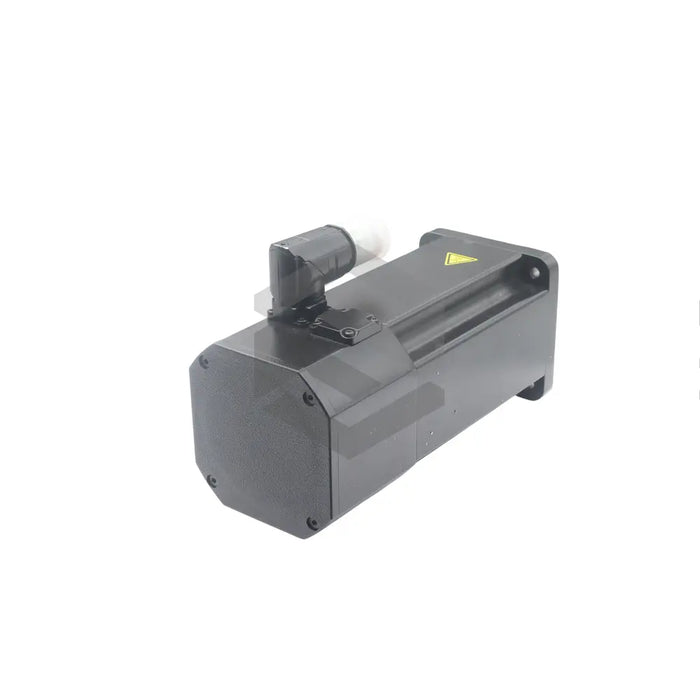

8LSA35.DB060S100-3

The B & R Automation 8LSA35.DB060S100-3 servo motor from the 8LS Synchronous Motors series delivers industry-grade performance in a compact frame. This three-phase synchronous motor outputs a rated power of 0.6 kW while sustaining a peak torque of 5.7 Nm, enabling high-dynamic motion control in automated machinery. The unit features a rugged IP65 protection class housing, ensuring resistance to dust ingress and water spray in demanding industrial environments. Built around a frame size 35 design with an 80 mm flange approximately 91.3 mm in diameter, this motor combines space-efficient packaging with substantial power density. Its high-resolution multi-turn encoder provides precision feedback, making it suitable for advanced positioning tasks and repeatable motion sequences.

Detailed technical specifications define the motor’s capabilities with precision. It operates on a rated voltage of 400 V and achieves a rated speed of 6000 rpm, while its thermal insulation reaches class 155 (F) for elevated temperature tolerance. The winding configuration DB060 and a rotor moment of inertia of 0.45 kg·cm² facilitate rapid acceleration and deceleration. Encoder performance is characterized by a resolution of 19/12 bits (single/multi-turn) and compliance with EnDat version 2.2 communication protocol, ensuring secure and accurate position data. The motor’s length code is rated 5, and it carries a product revision index of 3, reflecting the latest manufacturing improvements and quality control.

Operational features emphasize reliability and ease of maintenance. Self-cooling through free circulation eliminates the need for auxiliary fans or fluid systems, simplifying installation and reducing external components. The shaft end is furnished with key, providing secure coupling to gearboxes or pulleys without additional adapters. Connection hardware employs a standardized connector interface, enabling rapid electrical hookup and minimizing wiring errors. While the design omits an integrated holding brake, the motor’s robust electromagnetic design ensures consistent torque delivery under variable loads. The absence of a brake reduces complexity and weight, supporting streamlined integration into existing drive systems.

System integration is facilitated by the motor’s standardized configuration summary: 8LSA: Standard, no reinforced bearing, compatible with a wide range of B & R servo drives and motion controllers. Its comprehensive protection profile and high encoder resolution make the 8LSA35.DB060S100-3 ideal for robotics, conveyor systems, pick-and-place units, and other industrial automation applications where precision, responsiveness, and durability are mandatory. The IP65 rating and thermal class 155 insulation enable continuous operation in harsh factory conditions, while the connectorized power and feedback interface accelerate commissioning and maintenance. This motor stands as a reliable component for engineers seeking a balance of performance, robustness, and integration simplicity.
