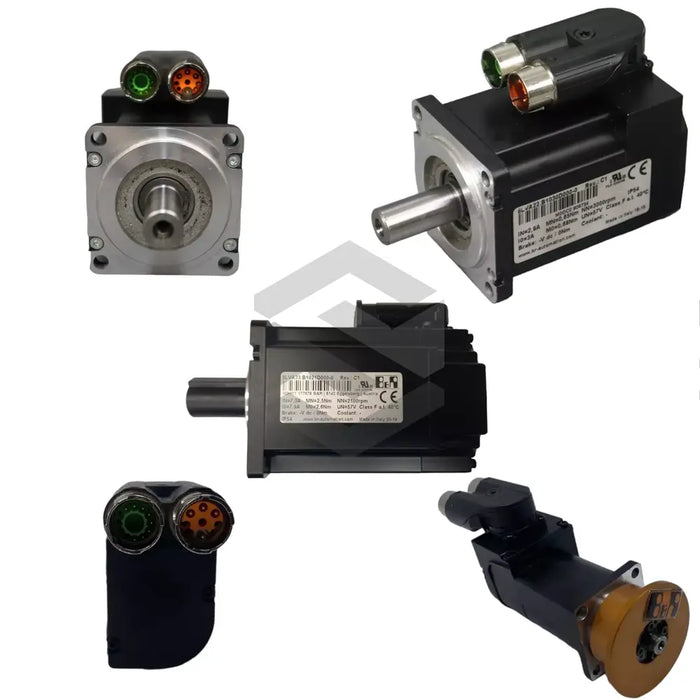

8LVA23.B1030D027-0
The 8LVA23.B1030D027-0 servo motor from B & R Automation is a high-performance unit in the 8LVA Three Phase Synchronous Motors series, designed for demanding industrial automation tasks. This part_number offers a nominal speed of 3000 rpm with a nominal current of 5.8 A, ensuring precise control in robotics and handling systems. With a stall current of 6 A and a rated maximum current of 20.7 A, the motor delivers robust acceleration and torque when needed. Featuring a Product Series designation of 8LV Servo Motor and a self-regulating Cooling Type of Self-cooling, this motor maintains thermal stability during continuous operation. The design also incorporates a Battery-backed encoder system to preserve position data in power interruptions and supports up to 65536 Revolutions per multiturn cycle for detailed motion tracking. The integrated Connection Type uses a built-in double angular connector (swivel) for secure cabling under dynamic conditions.
Performance metrics highlight the motor’s versatility: a nominal torque of 1.3 Nm paired with a maximum torque of 4 Nm offers a wide control range for both high-speed and high-load scenarios. The maximum speed of 6600 rpm enables rapid indexing, while the EnDat 2.2 Multiturn encoder with 16 lines delivers high-resolution feedback essential for closed-loop applications. The motor’s Motor Size of 2 and Motor Length of 3 balance compactness with power density, reducing machine footprint without sacrificing output. Electrical characteristics are optimized by the integrated encoder’s Battery-backed memory and the motor’s inherent Oil Seal-free architecture for reduced maintenance. The robust Termination Style of Screw Terminal ensures consistent electrical contact even in high-vibration environments.
Engineered for reliability, the 8LVA23.B1030D027-0 maintains performance across an Operating Temperature Range of -25 degrees C to +70 degrees C, making it suitable for harsh manufacturing settings. The absence of an Oil Seal simplifies assembly and minimizes downtime for service and cleaning. As a Type of Pushbutton Switch with Illumination enabled, the integrated momentary Button Function and Mounting Type of Panel Mount permit seamless operator interfacing for manual overrides and status indication. This combination of precision motor control and intuitive switch integration makes the unit ideal for CNC machines, pick-and-place robotics, conveyor indexing systems, and any industrial automation process requiring synchronized motion and reliable operator feedback.
