8LVA23.B8013D008-0

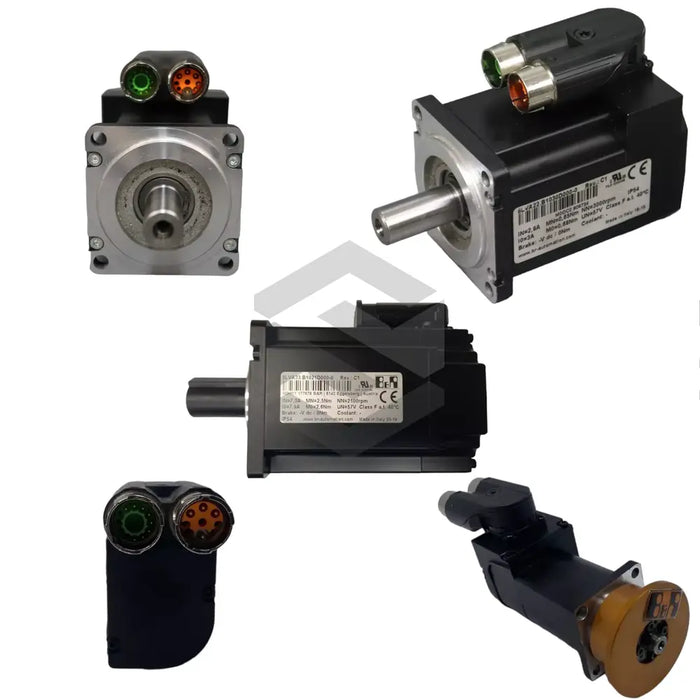

The 8LVA23.B8013D008-0 from B & R Automation is a high-performance servo motor in the 8LVA Three Phase Synchronous Motors series. This compact industrial unit features a 0.26 kgxcm^2 moment of inertia and an operating speed of 3000 rpm nominal speed, delivering precise motion in automation applications. Rated for 10–30 VDC operation and protected to IP67, it withstands harsh environments while weighing just 1.45 kg. Its robust design includes reverse polarity safeguards and self-cooling via a Cooling Type: Self-cooling system, eliminating the need for external fans.
With a nominal torque of 1.3 Nm and a stall torque of 1.35 Nm, this motor supports continuous power consumption of 408 W at a continuous current of 3.2 A and peak currents up to 11.2 A. The motor achieves a maximum torque of 4 Nm and a top speed of 6600 rpm, enabled by a Switching Frequency: 500 Hz and an emf constant of 25.13 V/1000 rev. Electrical characteristics include a stator resistance of 2.6 Ω, inductance of 6.3 mH, and an electrical time constant of 0.0024 s. Thermal stability is ensured by a heat-up period of 38 min and a rotor inertia of 0.12 kgxcm^2.
Operational efficiency is enhanced by an integrated single-turn EnDat encoder from HEIDENHAIN delivering 19-bit resolution and a positional Accuracy: ±120 (arcsec). The encoder’s shock resistance of 2000 m/s^2 and vibration tolerance of 600 m/s^2 ensure reliable feedback in dynamic applications. The motor is equipped with a Mounting Type: Flush interface and a Connection Type: Built-in double angular connector (swivel) rated for EMC shielding. Safety features include Short-circuit Protection: Yes, reverse polarity protection, and an optional Oil Seal: No upgrade for environments requiring additional sealing.
Designed for seamless system integration, the Product Series: 8LV Servo Motor offers a housing thread size of Housing Thread Size: M18 and a Motor Length: 3 and Motor Size: 2 form factor for compact installations. The output signal is Output Type: PNP, NO (Normally Open) with a Max Output Current: 200 mA, and no Battery-backed memory is required. Its smooth shaft and flush mounting simplify mechanical coupling, making it ideal for robotics, CNC axes, and packaging machinery. With its robust protection, precision feedback, and flexible connector design, the 8LVA23.B8013D008-0 motor integrates effortlessly into advanced industrial automation systems.
