8V1320.001-2

Original price $10,336.44 - Original price $10,336.44
Original price
$10,336.44
$10,336.44 - $10,336.44
Current price $10,336.44
Available, Shipping Varies

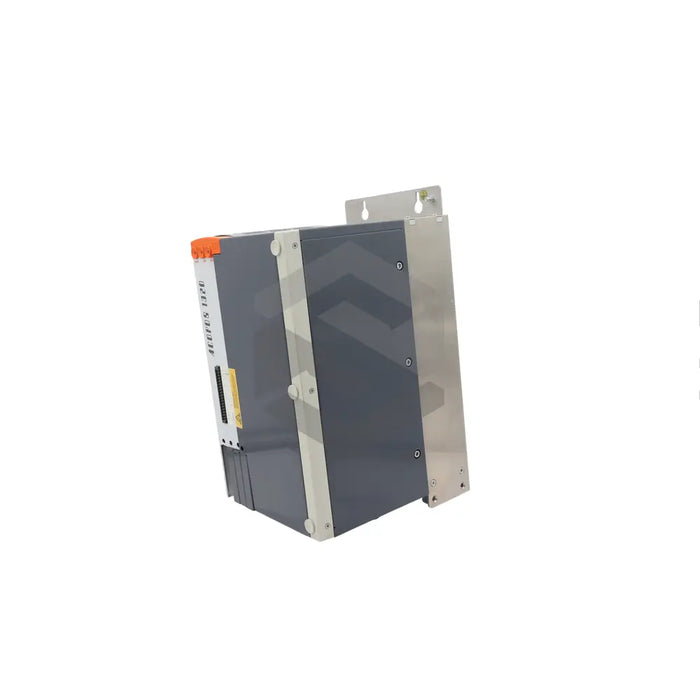

The 8V1320.001-2, a product of B & R Automation, is a high-quality Acopos servo drive. Made of premium materials, it can operate up to 55 degrees Celsius and at a height of 2000 meters above sea level. Weighing in at 10.6 kg, it's suitable for compact locations and harsh environments. With an input voltage range of 400 to 480 VAC and a motor connection with a nominal switching frequency of 10 kHz, it provides an efficient and precise operation, outperforming conventional motor control systems. Though it offers limited protection against dust and no protection against liquids due to its IP20 class, it's lightweight, small in size, and designed with an integrated line filter, making it ideal for space-limited applications. The device has a DC bus capacitance of 1645 microfarads, a brake resistor with a minimum braking resistance of 15 ohms, and is protected against overload and short circuits.
30 Day Warranty
Technical Specifications
  • Manufacturer: B & R Automation
  • Model: 8V1320.001-2
  • Material: High-Quality Materials
  • Operating Temperature: Up to 55 degrees Celsius
  • Maximum Operating Height: 2000 meters above sea level
  • Weight: 10.6 kilograms
  • Input Voltage Range: 400 to 480 VAC
  • Motor Connection Nominal Switching Frequency: 10 kHz
  • Motor Connection Max Output Frequency: 600 kHz
  • Maximum Installed Load: 30 kVA
  • Nominal Input Voltage: 24 VDC
  • Protection Class: IP20
  • DC Bus Capacitance: 1645 microfarads
  • Brake Resistor Braking Resistance: 15 ohms
  • Width: 200 mm
  • Height: 375 mm
  • Depth: 234 mm
  • Circuit Board Feature: Partially Coated with overload and short circuit protection
