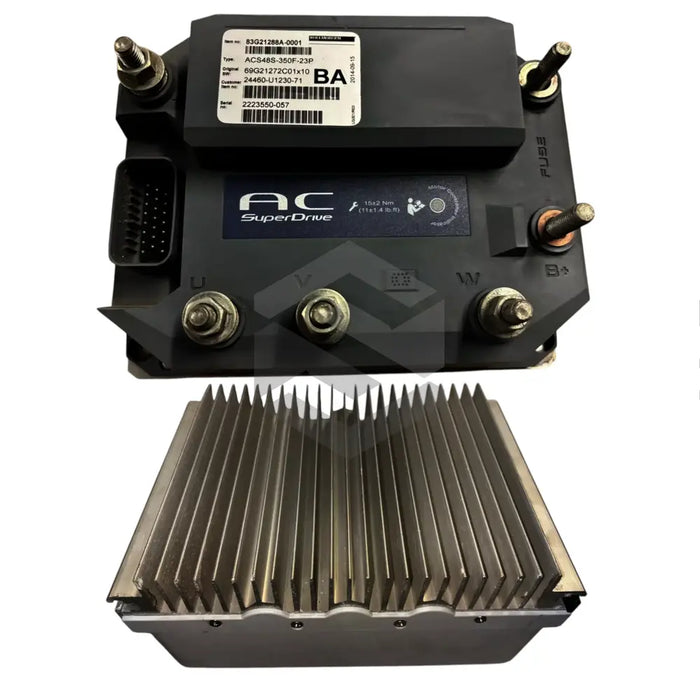

The Kollmorgen ACD4802-S1 is a robust integrated motion unit in the AC SuperDrive Motion Units series. It supports voltage versions of 24V/36V and 48V, offers switching frequencies of 8, 12 and 16 kHz, delivers 23 Arms (1 h) and 70 Arms (2 min) current, features IP65 protection, operates between -40°C to +55°C, uses an AMP SEAL 23-pin connector, and includes reverse polarity protection and an LED display.
Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.
Applicable Standards
EN 1175-1, UL 583
Connector Type
AMP SEAL 23-pin
Control Quadrants
1, 2, 4 quadrant control
Driving Current (1 Hour Rating)
23 Arms
Driving Current (2 Min Rating)
70 Arms
Motor Type
3-phase induction motor or PM synchronous motor
Operating Temperature
-40°C to +55°C (-40°F to +131°F)
Peak installation height
1000m above sea level
Power Output (1 Hour Rating)
1.3 kVA
Power Output (2 Min Rating)
3.9 kVA
Protection Class
IP65
Storage Temperature
-40°C to +70°C (-40°F to +158°F)
Switching Frequency
8 kHz, 12 kHz, 16 kHz
Voltage Versions
24V/36V, 48V
Warranty
12 month warranty from Wake Industrial
