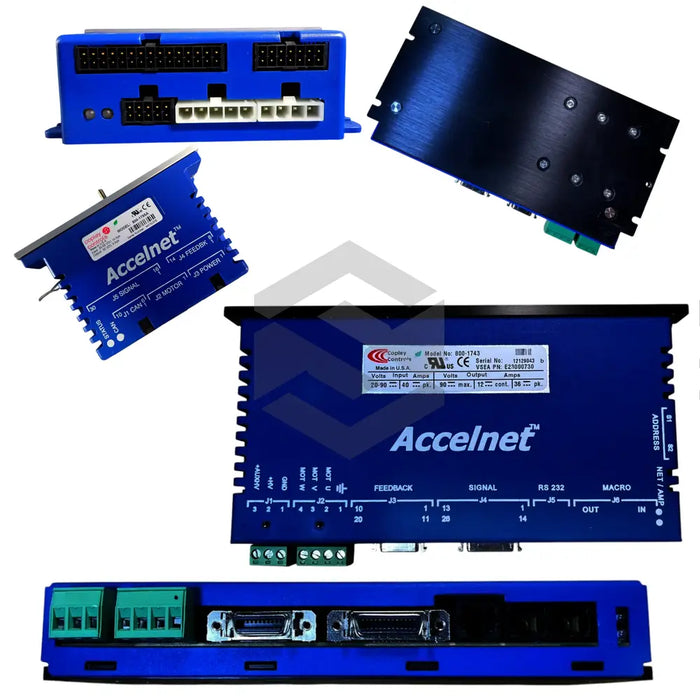

The ACJ-090-03-S from Copley Controls measures 3.83 x 2.47 x 1.29 inches and runs on 20-90 VDC. As part of the Accelnet CanOPEN Modules, it delivers 3 A DC peak current and a Sin/Cos encoder. This transformer-isolated drive offers 1024 counts per cycle interpolation and supports frequencies up to 230 kHz.
Operating at 0 to +45 °C with storage from -40 to +85 °C. It provides 1 A DC continuous current with overload limiting at 750 mA. It weighs 4.8 oz for easy integration.
Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.
Ambient Temperature (operating)
0 to +45 °C
Ambient Temperature (storage)
-40 to +85 °C
Continuous current
1 A DC (0.71 A RMS), ±5%
Dimensions
3.83 x 2.47 x 1.29 in (97.3 x 62.7 x 32.8 mm)
Encoder power supply
+5 V DC @ 400 mA
Encoder type
Sin/Cos analog incremental
Input voltage
20-90 V DC (transformer-isolated)
Interpolation resolution
10 bits/cycle (1024 counts)
Max line frequency
230 kHz
Output amplitude
1.0 Vpp typical, 1.25 Vpp max
Output type
Differential line driver
Overload protection current limit
750 mA @ 1 V DC
Peak current
3 A DC (2.12 A RMS), ±5%
Weight
4.8 oz (0.14 kg)
