S image of ACP-090-36

ACP-090-36

by Copley Controls
$953.92 - $953.92
$953.92
$953.92 - $953.92
$953.92

In Stock, Ships Fast

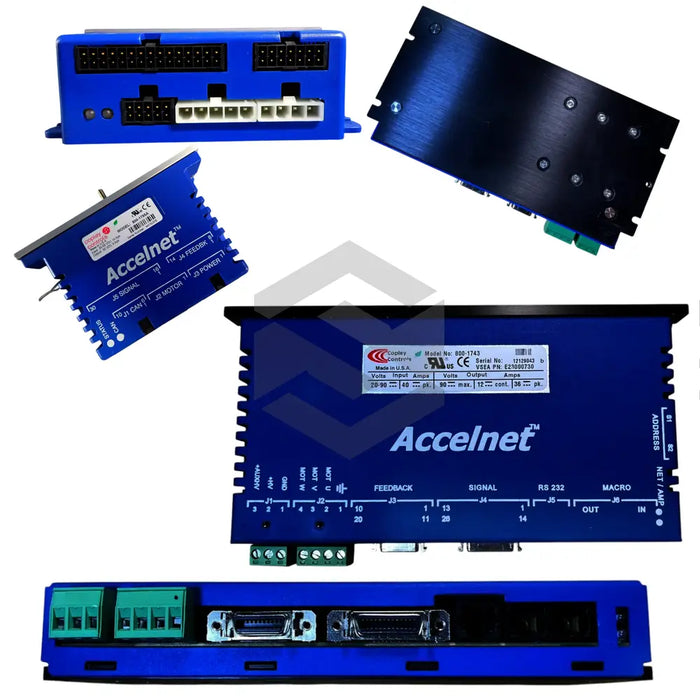

The ACP-090-36 from Copley Controls is a digital servo amplifier in the Accelnet CanOPEN Modules series. Delivering a peak current of 36 ADC and continuous current of 12 ADC, it operates on +20 to +90 VDC with a 15 kHz PWM frequency. Output power reaches 2.95 kW peak and 1.06 kW continuous, while overvoltage, undervoltage, over-temperature and short circuit protections ensure reliability. Weighing 0.94 lb, it features 100% digital current, velocity, and position loop control compliant with DSP-402.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Canopen Device Profile

DSP-402

Continuous Current

12 ADC

Cooling Requirement

Heat sink and/or forced air cooling required

Digital Control Loops

Current, velocity, position with 100% digital loop control

Input Power Range

+20 to +90 VDC

Maximum Output Voltage

HV*0.97 - Rout*Iout

Operating Temperature Range

0 to +45 degrees C

Output Power

2.95 kW peak, 1.06 kW continuous

Peak Current

36 ADC

Protection Features

Overvoltage, Undervoltage, Over temperature, Short circuits

Pwm Frequency

15 kHz, center-weighted

Size

6.58 in x 3.89 in x 1.17 in

Weight

0.94 lb
