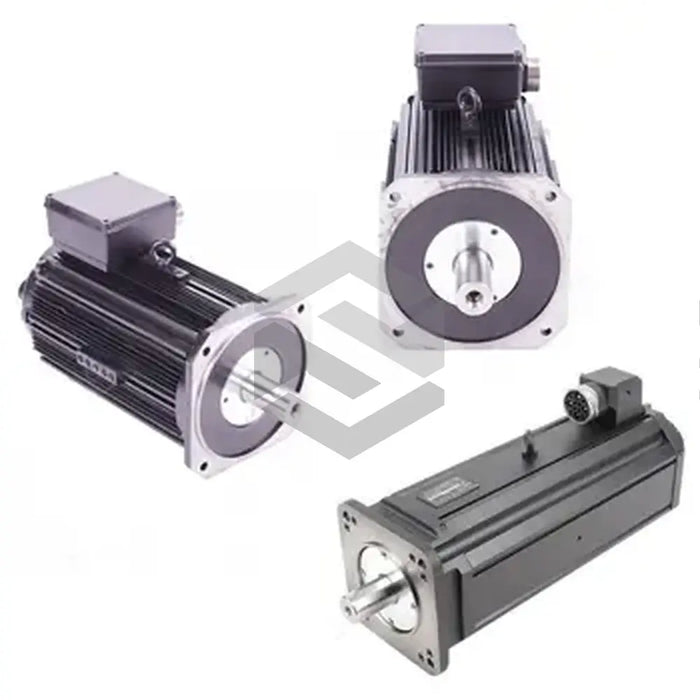

ADF134B-B05TA0-BS06-A2N2
The ADF134B-B05TA0-BS06-A2N2 main spindle motor by Bosch Rexroth Indramat is a high-performance solution within the ADF Main Spindle Motors series, designed for advanced motion control applications. This liquid-cooled asynchronous motor, categorized under Product Type as a Liquid-cooled asynchronous motors, features a compact Motor Size of 134 and a Motor Length code of B for streamlined integration. The unit employs a robust Mounting Type of flange mounting and a precision-engineered Shaft Design with a plain shaft profile, supporting versatile mechanical coupling. Power is delivered via a secure Power Connection Type connector/plug oriented Power Connection Direction to Side A, with the Power Connection Housing Position located on the top surface for simplified access. Coolant management is facilitated by an Coolant Connection Type axial port with a 1/4" connection thread, while an Output Connector on Side A ensures straightforward electrical interfacing. Feedback is managed through an integrated Feedback System featuring digital servo feedback, enabling precise closed-loop control.
Performance characteristics are optimized through a Balance Quality rated S under DIN ISO 2373, ensuring minimal vibration during high-speed operation. The motor utilizes a standard Bearing Type that balances load capacity and service life without additional complexity. A Winding Code of BS supports continuous operation under demanding conditions, while the absence of a Holding Brake Configuration streamlines the rotor assembly and eliminates mechanical drag. A sealed architecture is achieved with a Shaft Seal Ring omitted, relying instead on controlled coolant flow to prevent contamination and maintain temperature stability. The rear interface at Side B is simplified with a Side B Shaft End Configuration without a second shaft end, reducing weight and potential misalignment points. This motor’s low rotor inertia, inherent to its asynchronous design, permits rapid acceleration and deceleration cycles while maintaining thermal stability.
Reliability and integration are central to the design ethos of the ADF134B-B05TA0-BS06-A2N2. The liquid-cooled configuration ensures consistent heat dissipation, extending mean time between failures and reducing thermal stress on internal components. Flange mounting offers a standardized footprint for fast installation into CNC spindles, rotary tables, and other precision assemblies. The digital servo feedback loop continuously monitors rotor position and speed, enabling adaptive control algorithms to compensate for load variations and maintain accuracy. With a brushless induction design, the motor eliminates spark generation and reduces maintenance intervals, making it well suited for environments with strict safety and cleanliness requirements. Ideal applications include high-speed machining, automated assembly, and precision grinding setups where dependable performance and straightforward integration are paramount.
