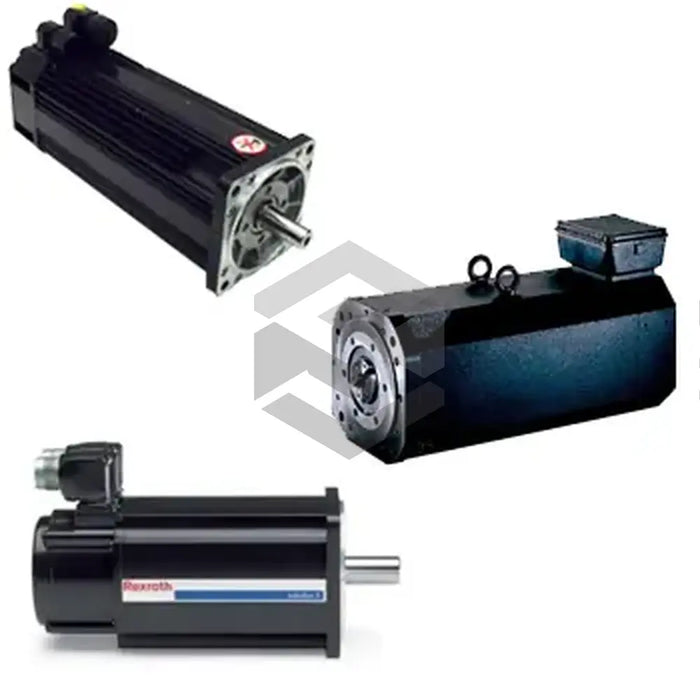

S image of ADS112C-B05TB1-ASF3-A2K4

ADS112C-B05TB1-ASF3-A2K4

by Bosch Rexroth Indramat
$0.00 - $0.00
Request a Quote
$0.00 - $0.00
Request a Quote

Request a quote

Add a Message
The Bosch Rexroth Indramat ADS112C-B05TB1-ASF3-A2K4 is a high-performance servo motor engineered for industrial automation tasks such as printing machines, packaging, machine tools, and robotics. This model delivers a power output of 20 kW at 380 V, with a maximum speed of 18,000 RPM and a rated torque of 64 Nm at a rated current of 58 A. The motor features an IP54-rated housing and insulation class F for enhanced environmental protection. It incorporates a servo feedback encoder for precise control and utilizes a 1.5 bar sealing air pressure system with a cooling-related power loss of 4 kW. With a rotor inertia of 0.02967 kgm² and operating between 0 to +40°C, it weighs 125 kg and is designed to ensure reliability and efficiency, featuring a ring-sealed output shaft and flange for easy installation. The model adheres to strict testing standards, ensuring high-quality performance.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Model

ADS112C-B05TB1-ASF3-A2K4

Manufacturer

Bosch Rexroth Indramat

Power Rating

20 kW

Voltage

380 V

Housing Rating

IP54

Insulation Level

F

Maximum Speed

18000 rpm

Rated Torque

64 Nm

Rated Current

58 A

Operational Temperature Range

0 to +40°C

Sealing Air Pressure

1.5 bar

Power Loss

4 kW

Weight

125 kg

Rotor Inertia Moment

0.02967 kgm2

Application

Industrial automation, printing machines, packing, machine tools, robots

Encoder

Servo feedback encoder

Installation Aid

Flange
