AKD-P00307-NBEI-0000

Original price $5,198.29 - Original price $5,198.29
Original price
$5,198.29
$5,198.29 - $5,198.29
Current price $5,198.29
In Stock, Shipping Varies
Request a quote

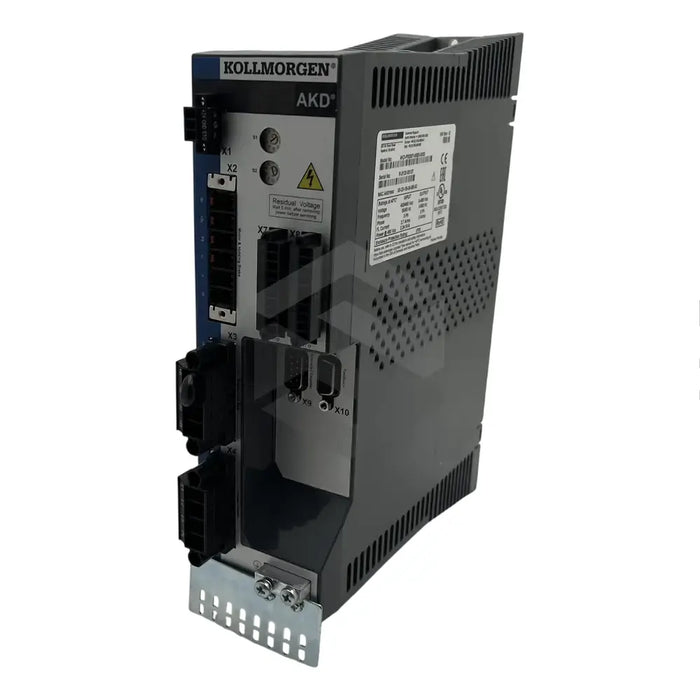

The AKD-P00307-NBEI-0000, a servo drive created by Kollmorgen, allows for both dynamic and static IP addresses and enables users to modify the IP address via its WorkBench software. Effective connectivity through WorkBench can only be achieved in either the Op, Safe-Op, or Pre-Op state. The device's distinct MAC address is printed on the side and unalterable. The servo drive’s rotary switches allow for changes in the CAN-Bus Baud rate and data storage on an SD card. It sustains a rated supply voltage of 240/480VAC, a top output current of 9A at a fluctuation of +/-3%, and weights 2.7 kg with standard width and 2.9 kg with extended width. In the Drive Overview window, users can access details such as the operational Fieldbus by selecting the Drive Type field. Extra information including firmware version and cumulative on time can be viewed by holding down the 'More' button.
30 Day Warranty
Technical Specifications
  • Manufacturer: Kollmorgen
  • Product: AKD-P00307-NBEI-0000
  • Type: Servo Drive
  • IP Address: Dynamic and Static
  • Software: WorkBench
  • Operation States: Op, Safe-Op, Pre-Op
  • Control Switch: Rotary Switches
  • Value Storage: SD Card
  • MAC Address Security: Unchangeable
  • Functions: Change CAN-Bus Baud rate, Load/Save Data to SD Card
  • Rated Supply Voltage: 240/480VAC
  • Peak Output Current: 9A +/-3%
  • Weight: 2.7kg (Standard Width), 2.9kg (Extended Width)
  • Fault Indication: LED Displays
  • Details Display: Drive Overview Window
  • Additional Information: Firmware version, Serial number and Cumulative on time
  • Delivery: Available
