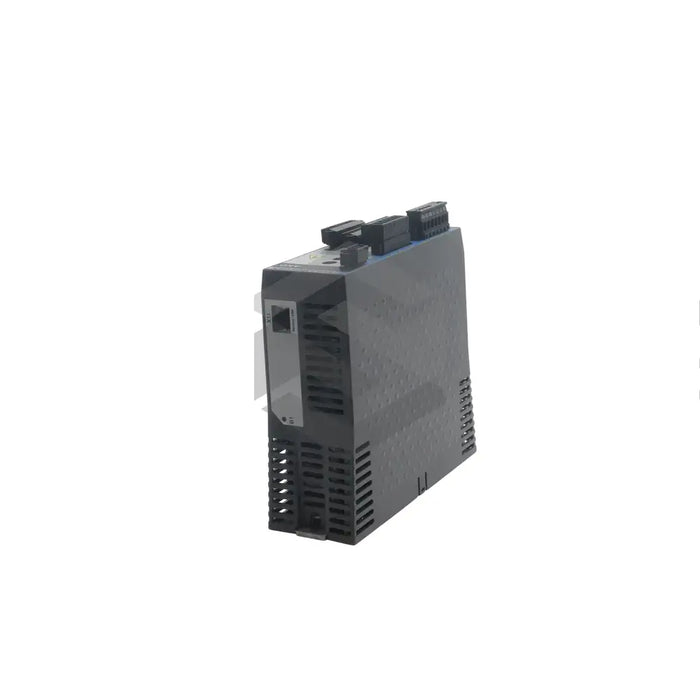

C image of AKD-P00606-NAAN-0000 | Main (Front Left)

AKD-P00606-NAAN-0000

by Kollmorgen
$2,448.74 - $8,199.98
$2,448.74
$2,448.74 - $8,199.98
$2,448.74

In Stock, Ships 1 - 3 Days

The AKD-P00606-NAAN-0000 is an advanced AKD series servo drive from Kollmorgen, designed for high-performance operations. It supports a current rating of 6A and a voltage range of 120VAC/240VAC, with the versatility to function with both single-phase and three-phase connections. It features compact dimensions of 168 x 158mm (H x D) excluding connectors and includes switches for IP address adjustments. The device is recommended for operation inside a ventilated control cabinet, with an in-built fan to maintain an internal temperature below 40°C. It utilizes copper conductors for wiring and synchronously drives servomotors through speed, position or torque closed-loop control. This unit also features a TCP/IP service channel and motion bus. The device operates at a pollution level of 2 as per IEC 60664-1, and it fosters various connectivity options, including analog. The drive operates with a relative humidity of 5% to 85% devoid of condensation according to the Class 3K3 standard.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Product Model

AKD-P00606-NAAN-0000

Manufacturer

Kollmorgen

Series

AKD

Type

Servo Drive

Current Rating

6A

Voltage Rating

120VAC/240VAC

Connection Type

Single-phase and Three-phase

Dimensions

168 x 158mm (H x D) Without Connectors

Modes

Supports DHCP mode when S1 and S2 switches are set to 0

Operating Conditions

Inside a closed control cabinet, less than 40°C

Wiring Material

Copper Conductors

Function

Driving synchronous servomotors with speed, position or torque closed-loop control

TCP/IP Service Channel

Onboard

Motion Bus

Onboard

Output Stage

IGBT Module, Capable of measuring floating current

Pollution Level

2

Relay Output Times

Open/Close time of 10ms

Maximum Inrush Current

10A

Maximum Velocity Loop Bandwidth

0kHz to 1,000kHz

Error Indication

F105 Error Code displayed for non-volatile memory issues

Connectivity

Supports Analog Connectivity

Humidity

Class 3K3, 5% to 85% without condensation during operation.
