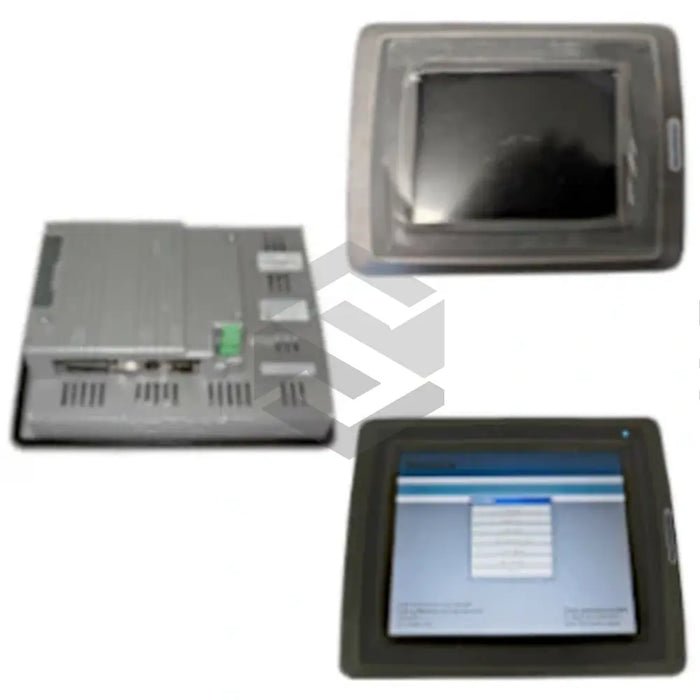

S image of AKI2G-CDB-MOD-12T-000

AKI2G-CDB-MOD-12T-000

by Kollmorgen
$5,134.20 - $6,199.87
$5,134.20
$5,134.20 - $6,199.87
$5,134.20

In Stock, Ships 1 - 3 Days

The AKI2G-CDB-MOD-12T-000, crafted by Kollmorgen, is a highly sophisticated Human Machine Interface (HMI) graphic display aimed to enhance communication between humans and machinery. With a weight of 2.6 kg and dimensions of 340 x 242 x 57mm, this device is installed within a powder-coated aluminium casing. It shows information via a 12.1” diagonal TFT-LCD display, with a resolution of 1280 x 800 pixels. This interface is powered by an i.MX6DualLite Dual Cortex-A9 processor, featuring a processing speed of 1.0 GHz. With two 10/100 Base-T ethernet ports, a ciX expansion slot, and a 500mA USB 2.0 port, this device operates at a power rating of 28.8W. Boasting 1GB RAM and 2GB flash memory, this device functions best between temperatures of -10o C to 60o C, and keeps data safe between -20o C to 70o C.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Kollmorgen

Product Code

AKI2G-CDB-MOD-12T-000

Product Category

Human Machine Interface (HMI)

Weight

2.6 kg

Mechanical Size

340 x 242 x 57 mm

Cut-Out Size

324 x 226 mm

Casing Material

Grey powder-coated aluminium

Touchscreen Type

Resistive, polyester-on-glass with ITO film

Display Type

12.1” diagonal TFT-LCD

Resolution

1280 x 800 pixels

Backlight Type

LED

Backlight Brightness

400 cd/m2

LED Backlight Lifetime

50,000 hours

Processor Type

i.MX6DualLite, Dual Cortex-A9

L2 Cache

512 kb

Processing Frequency

1.0 GHz

Ethernet Ports

2, 1 x 10/100 Base-T (shielded RJ45)

Expansion Ports

ciX expansion module, SD and SDHC ports, USB 2.0 port (500mA rated)

Power Rating

28.8W

Input Voltage

+24 V DC (18 to 32 V DC)

RAM

1 GB

Flash Memory

2 GB eMMC (with 1.5 GB dedicated to application storage)

Operating Temperature

-10o C to 60o C

Storage Temperature

-20o C to 70o C

Relative Humidity

5 % to 85 % (Non-condensed)

Front Sealing

IP 65

Back Sealing

IP 20
