AKM12C-ANCNR-00

Original price $1,679.18 - Original price $1,679.18
Original price
$1,679.18
$1,679.18 - $1,679.18
Current price $1,679.18

Available, Shipping Varies

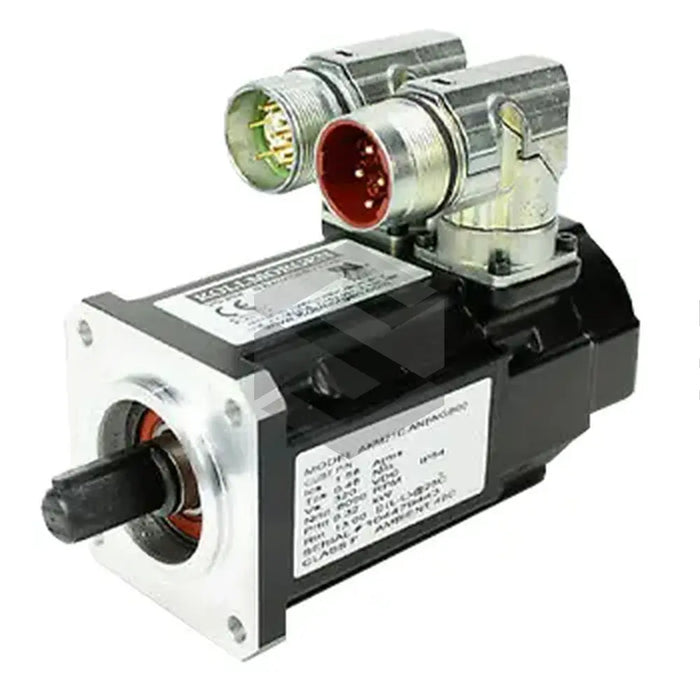

The Kollmorgen AKM12C-ANCNR-00 is a high-performing, dynamic synchronous servomotor with a 40mm flange, a rotor length of 2, and C-type winding. The connectors may not be unplugged when the motor is active and must operate within a 5 to 40°C temperature range. The motor features Class F insulation and is designed with rare earth magnets. It has a peak current rating of 6.06A, peak torque rating of 1.08A, and weighs 0.49kg. The rotor inertia is rated at 0.031kgcm2. The IEC-spec flange design incorporates a smooth shaft and a 0.5m shielded cable with IP 65 connectors. The motor should be ceased immediately when bearing noise is heard, which should be checked every 2500 hours, and disposed of through a certified company if necessary. Unauthorized connection to the main supply and physical obstruction might stall the motor rotation. Global delivery is available.

Contact Us

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

2 - 4 Days
Handling Time

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer


Kollmorgen

Product Type


Synchronous Servomotor

Model


AKM12C-ANCNR-00

Series


AKM

Flange Size


40mm

Rotor Length


2

Winding Type


C

Operating Temperature


5°C-40°C

Insulation Class


F

Peak Current Rating


6.06A

Peak Torque Rating


1.08A

Weight


0.49kg

Rotor Moment of Inertia


0.031kgcm2

Flange Design


IEC Specifications

Shaft Type


Smooth

Cable Length


0.5m

Connectors


IP 65

Check Interval


2500 Operating Hours

Disposal


Certified Disposal Company Only

Shipping


Worldwide
