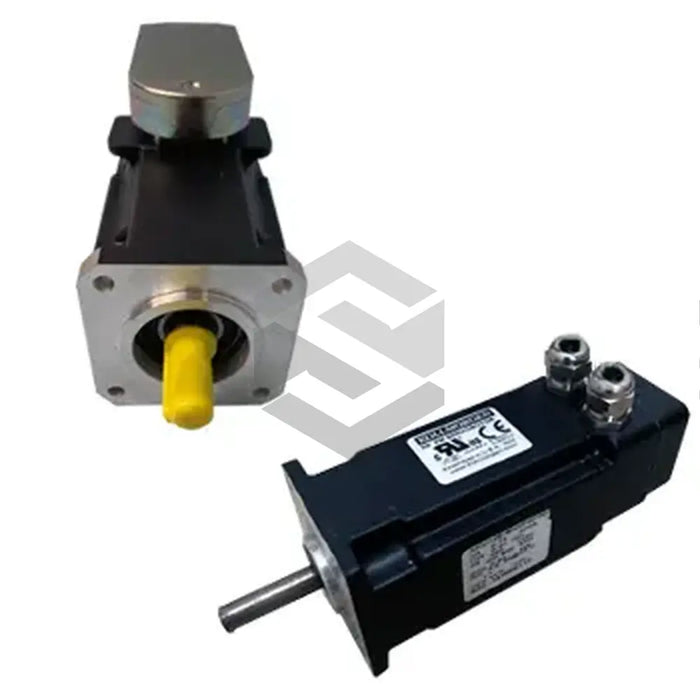

AKM22C-ANB21-00
by Kollmorgen
The Kollmorgen AKM22C-ANB21-00 servomotor, part of the AKM Synchronous Servo Motors series, is engineered for high dynamic performance and stability in precision machine drives. It is equipped with a comcoder with 1024 PPR for feedback and features a smooth shaft design that eliminates the need for a shaft seal. Designed to operate under ambient conditions as specified in its product documentation, this synchronous DC servomotor is an ideal component for integration into machinery and electrical apparatus, where reliability and precise control are a necessity.
Detailed technical specifications highlight several key aspects of this device. It includes a standard Customization offering and is fitted with a built-in 24V Holding Brake, which provides a holding torque of 1.42 Nm at 120°C. The device has a Flange Size of 58 mm, a Rotor Length of 2, and a Standstill Current of 1.39 A alongside a Standstill Torque of 0.84 Nm. Its windings are arranged in a Winding Type configuration labeled as C, ensuring the motor is optimized for dynamic loads while maintaining thermal integrity via an integrated thermal sensor.
Additional features underscore the motor's suitability for demanding industrial applications. The integrated 24V Holding Brake enhances stationary performance during critical operations, assuring safety and operational consistency. Moreover, the unit is coated in matt black with a durable polyester powder coating and includes rotatable angular connectors for power supply and feedback signals, underlining its adaptability in various system configurations. With a maximum mains voltage of 480 VAC, the motor is designed for efficient heat transfer and reliable operation in environments free from conductive or aggressive materials, making it a trusted component for modern and demanding electromechanical systems.
