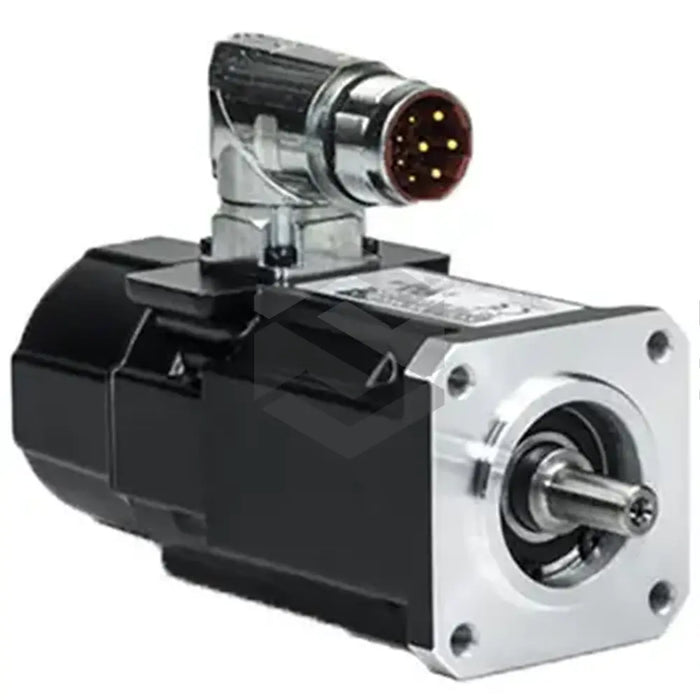

AKM22C-ANBNR-00

Original price $1,055.00 - Original price $1,055.00
Original price
$1,055.00
$1,055.00 - $1,055.00
Current price $1,055.00
In Stock, Ships 1 - 2 Days
Request a quote
The AKM22C-ANBNR-00 is a high-performance synchronous servomotor developed by Kollmorgen, part of the esteemed AKM series. This motor features a 58mm flange and a rotor length of 2, designed to operate seamlessly with Kollmorgen's SERVOSTAR digital servoamplifiers. To achieve high dynamic operation, it deploys powerful, permanently installed rare earth neodymium-iron-boron magnets within the rotor. Furthermore, it holds a three-phase winding integrated in the stator. This motor adheres to EN 50178 specifications, rated for a 3K3 climate category, and the insulation is of Class F, per DIN 57530 guidelines. Bearing longevity is secured by a packed grease mechanism. The device's winding carries type C designation, with a standard IEC compliant flange. The motor leverages friction locking and backlash-free couplings or collets for optimum operation. It uses built-in temperature sensors to ensure safe operating conditions, and comes standard with a resolver for accurate feedback. This product is available for worldwide shipping.
30 Day Warranty
Technical Specifications
  • Product Model: AKM22C-ANBNR-00
  • Manufacturer: Kollmorgen
  • Series: AKM Series
  • Flange Size: 58mm
  • Rotor Length: 2
  • Use Environment: Free of axial loads
  • Use With: SERVOSTAR series digital servoamplifiers
  • Motor Type: Brushless DC
  • Application: Demanding servo applications
  • Rotor Magnets Material: Rare earth neodymium-iron-boron
  • Number of Phases: Three-phase
  • Climate Category: 3K3 (EN 50178)
  • Mounting Style: IM B5 or horizontal
  • Insulation Class: Class F (DIN 57530)
  • Bearing Lubrication: Grease packing
  • Winding Type: C
  • Flange Design: IEC specifications
  • Use with Couplings or Collets: Frictionally locking and backlash-free
  • Operating Temperature Range: Ambient
  • Temperature Monitoring: Stator windings temperature sensor
  • Switching Point: 155 +/- 5%
  • Motor Thermostat: Integrated into the digital servoamplifier
  • Feedback System: Resolver
  • Shipping: Worldwide delivery
