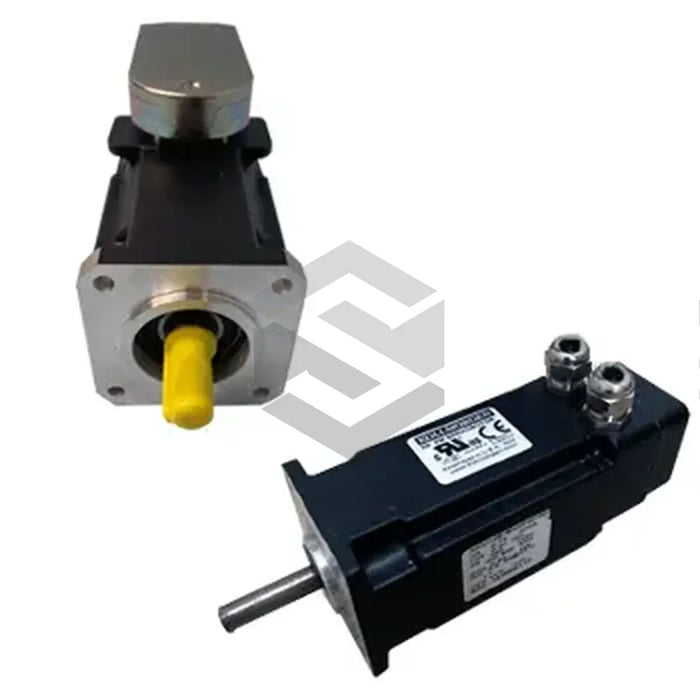

The Kollmorgen AKM22H-ANBNAD-01 is a precision servo motor in the AKM Synchronous Servo Motors series with a rotor inertia of 0.080 oz-in-s², six poles, and 0.005 Nm static friction torque. It handles 140 lb radial and 400 lb axial loads, features PG 13.5/1/2 NPSC TAP conduit connection, optional splashproof construction, and encoder options of 500/1000 lines per revolution.
Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.
Axial Force Load On Shaft
400 lb (1780 N)
Conduit Connection Type
PG 13.5 or 1/2 NPSC TAP
Drive Output Type
Differential Line Drive
Encoder Accuracy
90° ±35° Phase Difference
Encoder Mounting Option
Available Except 3-Stack Models
Encoder Supply Voltage
5 VDC ± 10%
Lines Per Revolution (encoder)
500 or 1000
Maximum Dimension L1
5.61 [142.50]
Operating Temperature (encoder)
-40°C to 100°C
Radial Force Load On Shaft
140 lb (623 N)
Rotor Inertia
0.080 oz-in-s² (0.56 x10³ kg-m²)
Round Mounting Configuration Dimension B.c.
Ø3.000 [76.2]
Splashproof Construction
Optional Terminals Fitted
Stack Length L2
4.85 [123.19]
Standard Front Shaft Configuration
Yes
