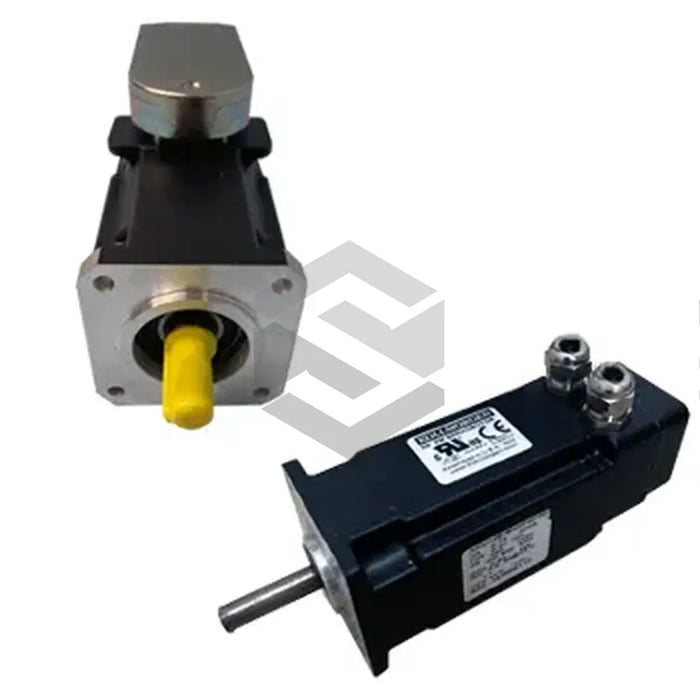

The AKM22H-ANM2AD-00 is a synchronous servo motor by Kollmorgen, part of the AKM Synchronous Servo Motors. It incorporates an optical incremental encoder with 1000 lines per revolution, a NEMA 42 frame, and 5 VDC ±10% supply. With a rotor inertia of ~0.24 kg·m2×10^-3, 60 N axial load capacity, and 9 min thermal time constant, it operates from -40 to 100 °C.
Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.
Conduit Connection
PG 13.5 TAP or 1/2 NPSC TAP
Dimensions
L1 Max: 10.56 inch, Ø 3.000 B.C.
Encoder Type
Optical Incremental Encoder
Lines Per Revolution
1000
Nema Frame Size
42
Operating Temperature Range
-40°C to 100°C
Output Format
Dual Channel Quadrature with Index (Z)
Output Frequency
100 kHz
Output Type
Differential Line Drive
Rotor Inertia
~0.24 kg-m2 x 10^-3
Shaft Loading (radial)
Typical ~140 lbs or more
Supply Voltage
5 VDC ±10%
Thermal Resistance
Varies based on model, example: ~3.8°C/Watt
Weight
Varied by configuration, typical ~25 lbs
