AKM23D-ANBNC-00

Original price $2,511.00 - Original price $2,511.00
Original price
$2,511.00
$2,511.00 - $2,511.00
Current price $2,511.00
In Stock, Ships 1 - 2 Days
Request a quote

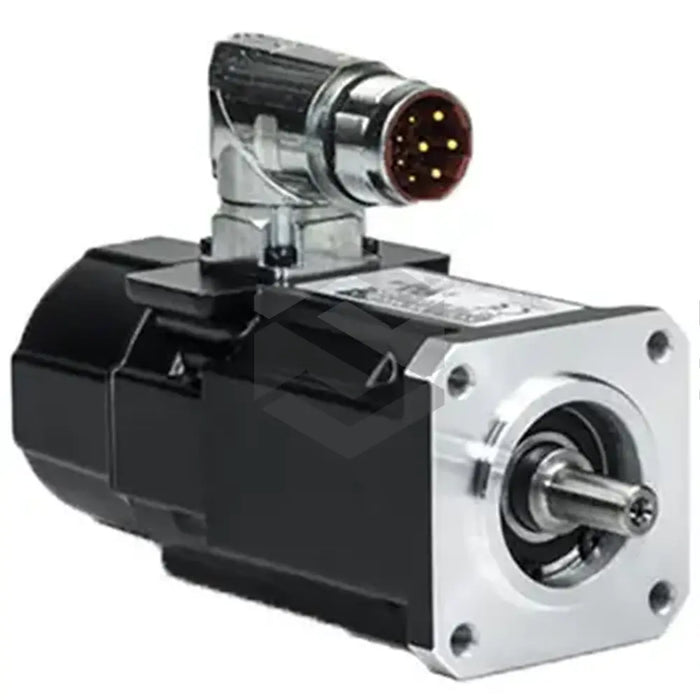

The AKM23D-ANBNC-00 is a superior-grade servomotor manufactured by Kollmorgen, a leading industrial technology brand. Renowned for precision, durability, and performance, the AKM range offers high power density and stand out performance. The series includes seven frame sizes, 28 frame/stack combinations, and five winding options offering a top speed of 8000 RPM. Customization options include a variety of feedback devices, seals, and mounting options. Designed to maximize its neodymium-iron-boron rare-earth magnet's potential, the AKM23D-ANBNC-00 model has an IEC standard compliant flange mounting and a smooth shaft. Moreover, it houses a Smart Feedback Device. Weighing at 1.38 kg, it has a sizeable 58 mm flange and a class F winding. When operating on 400V or 480V, the model provides a rated torque of 0.93 Nm and power of 0.77 kW. Its standstill torque is 1.16 Nm. Featuring low-cogging and harmonics, the motor offers a smooth and stable performance.
30 Day Warranty
Technical Specifications
  • Manufacturer: Kollmorgen
  • Product Code: AKM23D-ANBNC-00
  • Product Type: Servo motors
  • Series: AKM
  • Frame Sizes Available: 7
  • Top Speed: 8000 RPM
  • Voltage Variations: 75Vdc, 115/230/400/480 VAC
  • Weight: 1.38 kg
  • Flange Size: 58 mm
  • Rotor Length: 3
  • Mounting Standard: IEC
  • Shaft Type: Smooth without Keyway
  • Feedback Device: Smart Feedback Device
  • Maximum Voltage: 400V or 480V
  • Rated Torque: 0.93 Nm
  • Rated Power: 0.77 kW
  • Standstill Torque: 1.16 Nm
  • Winding Class Material: F
  • Operating Temperature: 155 degree Celsius
  • Performance Attribute: Low harmonic distortion and low-cogging
