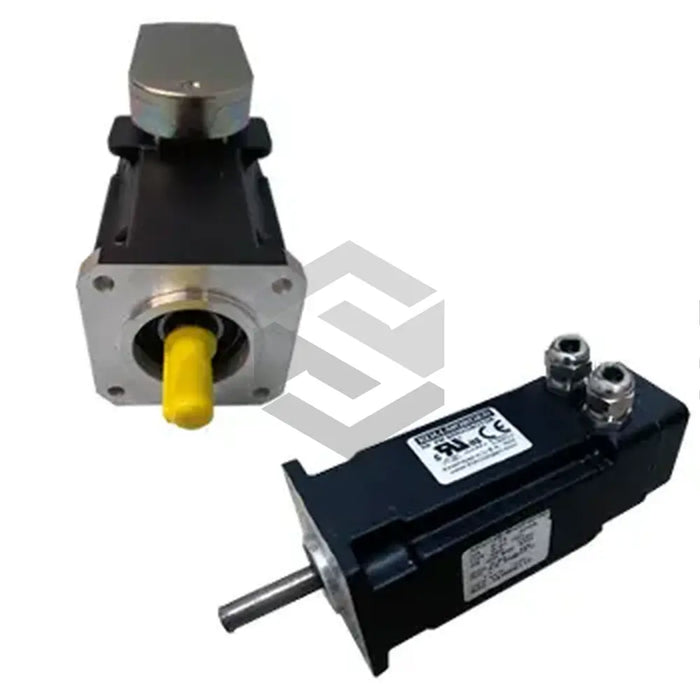

S image of AKM23F-ANM22-00

AKM23F-ANM22-00

by Kollmorgen
$585.00 - $1,097.25
$585.00
$585.00 - $1,097.25
$585.00

In Stock, Ships 1 - 3 Days

The Kollmorgen AKM23F-ANM22-00 is a synchronous servomotor designed for precision applications, requiring careful handling to prevent damage. It features a holding brake for locking the rotor, contributing to its extended length due to the integrated feedback system. Proper earthing of the mounting plate and motor housing is essential, along with safeguarding the flange and shaft against excessive force during storage and assembly. Accurate coupling alignment is necessary to protect the bearings from damage. It operates with potentially high voltages up to 900 V, and the motor housing surface can exceed temperatures of 100°C, posing a burn risk during operation. Electrical connections should adhere to the wiring diagram in the servomotor amplifier manual, with shields connected to EMC terminals. The cable has a bending radius of 100 mm for the comcoder. Operation is restricted to environments free from dust, vapors, and oils, and the motor’s ambient conditions must be followed as documented.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Product

AKM23F-ANM22-00

Manufacturer

Kollmorgen

Product Type

Synchronous Servomotor

Earthing Connection

Required for mounting plate and motor housing

Feedback System

Included

Holding Brake

Included

Cable Bending Radius

100 mm

Surface Temperature

>100°C during operation

Electrical Voltage

Up to 900 V at live connection points

Ambient Conditions

Must follow specified documentation

Environment Restrictions

Prohibited in dusts, vapors, and oils

Coupling Alignment

Correct alignment required

Flange and Shaft

Must be safeguarded against brute force

Electrical Connections

Live in energized state

Wiring

Follow product manual of servo amplifier

Shielding

Connect shields to terminals or EMC connectors at both ends

Assembly and Orientation

Must be checked at setup

Holding Brake Limitation

Fails to grip with high required holding torque

Braking

Not for repeated braking

Cautions

Surfaces may cause burns if touched during operation
