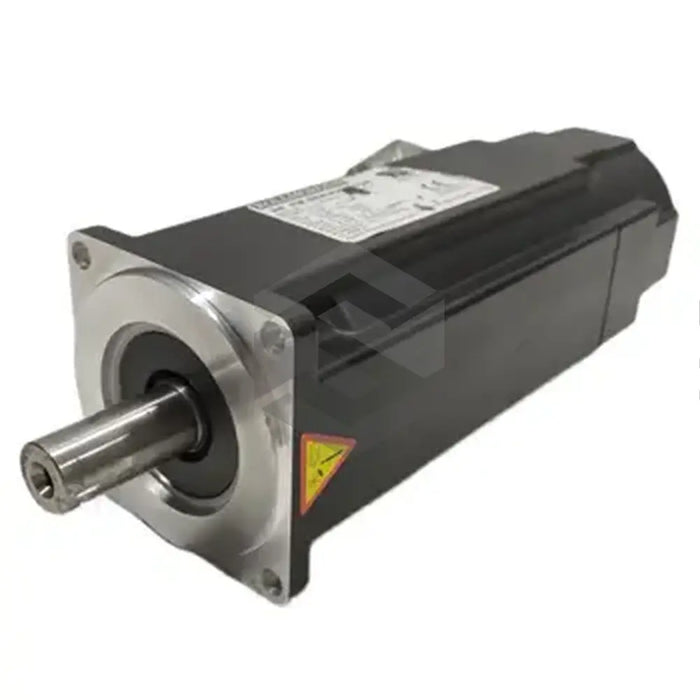

P image of AKM33E-ANC2R-00

AKM33E-ANC2R-00

by Kollmorgen
$2,382.55 - $4,795.81
$4,795.81
$2,382.55 - $4,795.81
$4,795.81

Available, Shipping Varies

The AKM33E-ANC2R-00 is a synchronous servomotor from Kollmorgen's AKM series, built for industrial purposes like textile and machine tool applications. With a 70mm flange size and a standstill torque between 1.15 and 2.88Nm, this unit delivers high dynamics when driven by SERVOSTAR's servo amplifier, under speed and/or torque control. It possesses a brushless design thanks to electrical commutation and its in-built rare earth magnetic material. Designed with a matte black finish, it is unsuitable for exposure to solvents such as trichloroethylene. It supports three mounting positions, with IM B5 being preferred. Available options include holding brake, keyway, radial shaft-sealing rings, and multiple encoder types. Structurally, it features a smooth shaft, IEC flange type, and angular connectors, along with a holding brake of 24V and resolver feedback. It ensures a ball-bearing life of 20,000 operational hours, can withstand a radial load of 195FR, and weighs approximately 2.9kg.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

2 - 4 Days
Handling Time

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Kollmorgen

Product Series

AKM

Product Type

AKM33E-ANC2R-00

Standstill Torque

1.15 - 2.88 Nm

Flange Size

70mm

Required Amplifier

SERVOSTAR servo amplifier

Motor Design

Brushless

Mounting Orientation

IM B5 recommended

Available Add-ons

Holding brake, keyway, radial shaft-sealing rings, and EnDat, Comcoder, SFD, BISS

Coating

Matt black (non-resistant to trichloroethylene)

Winding Type

E

Flange Type

IEC

Shaft Design

Smooth

Connector Type

Angular

Holding Brake Voltage

24V

Feedback

Resolver

Ambient Operating Temperature

5 to 40 degrees

Permissible Humidity

95% without condensation

Installation Elevation

Up to 1000 meters above sea level

Ball-Bearing Life

20,000 operating hours

Weight

Approx. 2.9kg

Permitted Radial Load

195FR
