AKM41E-ANC2C-00

Original price $2,250.00 - Original price $2,250.00
Original price
$2,250.00
$2,250.00 - $2,250.00
Current price $2,250.00
Available, Shipping Varies
Request a quote

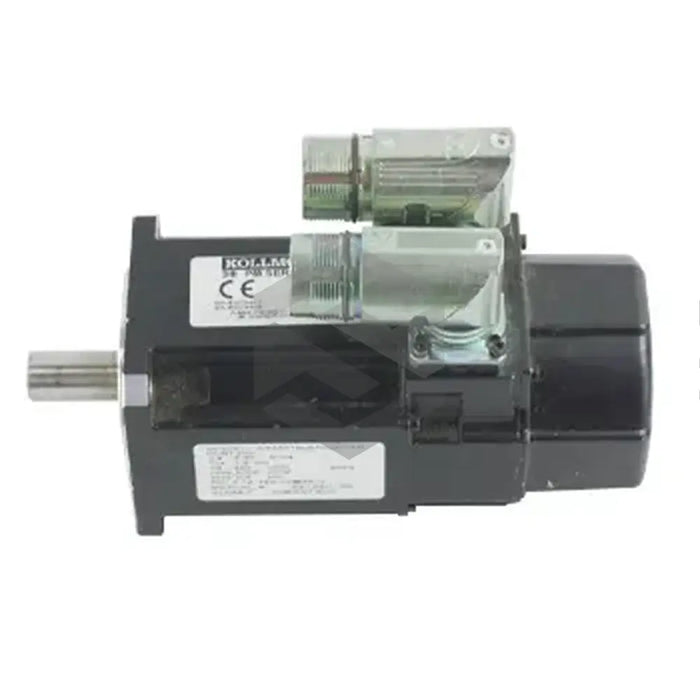

The Kollmorgen AKM41E-ANC2C-00 synchronous motor, with a mass of 2.55 kg, is specifically designed for servo applications in dynamic operation conditions. With the capacity to support 450 N radial and 180 N axial loads, it exhibits an increased 10% radial load bearing when power output is derived from the shaft end's midpoint. Notably, it can generate a peak torque of 11.4 Nm across its 6000 rpm rated speed and produce 0.99 kW power at a 480 V mains voltage. Compliant with European IEC standards, it features the IM B5 mounting style and class F insulation. Additionally, the motor integrates a continuously monitored, electrically isolated PTC to prevent overheating. Paired with the SERVOSTAR servo amplifier and an inbuilt resolver, it ensures precise regulation of speed, torque, and positioning. With its IP 65 compliant design, the motor is well-protected against dust and water jet intrusion, demonstrating high functionality and longevity in a secured, reliable package.
30 Day Warranty
Technical Specifications
  • Manufacturer: Kollmorgen
  • Product Type: Synchronous Motor
  • Model: AKM41E-ANC2C-00
  • Product Application: Servo Applications
  • Product Weight: 2.55 kg
  • Radial Load Bearing: 450 N
  • Axial Load Bearing: 180 N
  • Peak Torque: 11.4 Nm
  • Rated Speed: 6000 rpm
  • Mains Voltage: 480 V
  • Generated Power: 0.99 kW
  • Rotors Moment of Inertia: 0.81 kgcm2
  • Mounting Style: IM B5
  • Insulation Material Class: F
  • Protection Rating: IP 65
  • Servo Amplifier: SERVOSTAR
  • Operational Life: Extended
