AKM41E-EKCNC-00

Request a quote

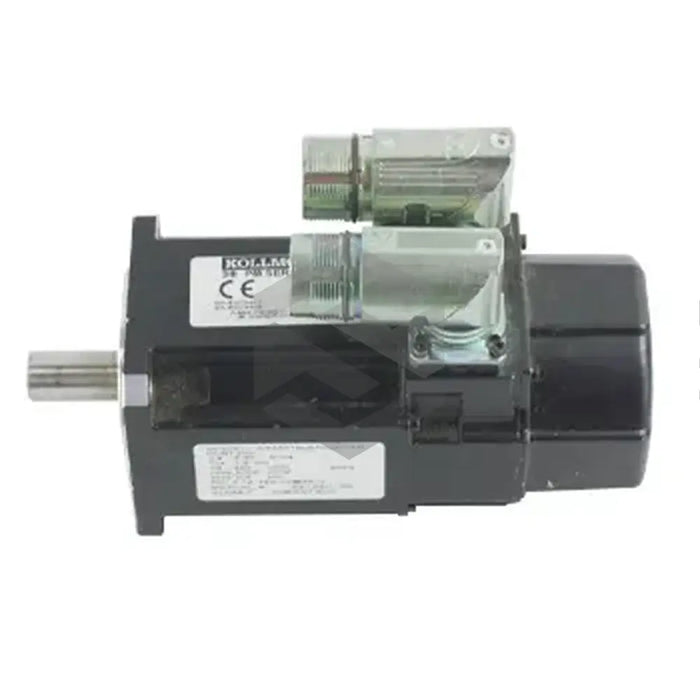

The Kollmorgen AKM41E-EKCNC-00 is a high-performing servomotor, designed for impelling seamless production and enhancing automation platforms. Known for delivering precision-controlled motion, it's a part of the successful AKM Synchronous Servomotor series. Integrated with strategically placed rare earth magnets in their stators, the motor provides robust power and compactness, making it ideal for prevailing industrial conditions. This top-tier servomotor has a standstill torque of 2.02Nm and a standstill current of 2.85A. At an input signal of 400V, it can reach a rated speed of 6000 RPM, deliver a rated torque of 1.58Nm, and produce a rated power of 0.99 kW. Accommodating an open keyway output shaft and an 84mm flange, it facilitates efficient power delivery and easy integrating. It also includes a smart feedback device with 0.5m of shielded cable and angular connectors, showcasing its mark in industrial revolution's autonomous technologies.
30 Day Warranty
Technical Specifications
  • Manufacturer: Kollmorgen
  • Product Line: AKM Synchronous Servomotor series
  • Model: AKM41E-EKCNC-00
  • Rare Earth Magnets: Incorporated in stators
  • Protection Degree: IP65
  • Thermal Insulation: Class F
  • Vibration: Class N
  • Standstill Torque: 2.02 Nm
  • Standstill Current: 2.85 A
  • Input Signal: 400V
  • Rated Speed: 6,000 RPM
  • Rated Torque: 1.58 Nm
  • Rated Power: 0.99 kW
  • Flange Size: 84mm
  • Feedback Device: Included
  • Shielded Cable Length: 0.5m
  • Connectors: Angular
  • Output Shaft: Open keyway.
