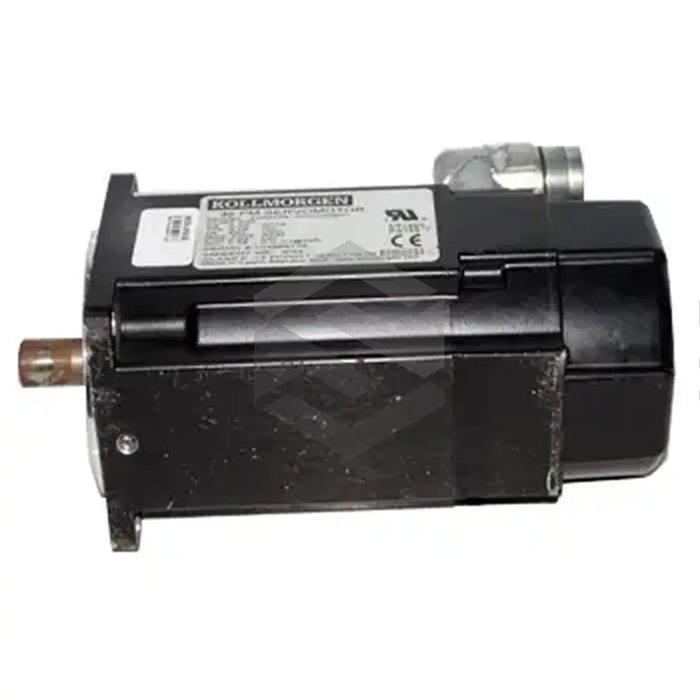

P image of AKM42E-EKC2DB-00

AKM42E-EKC2DB-00

by Kollmorgen
$0.00 - $0.00
Request a Quote
$0.00 - $0.00
Request a Quote

Request a quote

Add a Message
The Kollmorgen's AKM42E-EKC2DB-00 is a three-phase synchronous servomotor that pairs with a SERVOSTAR digital servomplifier for effective torque or speed control applications. Notable for its resilience, the motor, however, has an enamel coating that is not resistant to certain solvents. It's designed to be used in transfer lines, machine tools, and industrial robots, with an IM B5 mounting style. Power derating occurs between temperatures of 40°C and 50°C, decreasing by 1% per degree Kelvin. Safety features include a needed anti-surge device and an additional open contact in the braking circuit. Following the EN 60204 standards, it comes with angular connectors and requires compliant cables. Detailed specifications such as standstill current, protection class, winding resistance, rated power, and mains voltage are provided on the nameplate. Moreover, it possesses a static friction torque of 0.026Nm, a thermal time constant of 17 minutes, and a speed rating of 4,000min-1 at 480V.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Product

Kollmorgen AKM42E-EKC2DB-00 synchronous servomotor

Manufacturer

Kollmorgen

Use

Torque or speed control applications

Mounting Style

IM B5 horizontal

Power Derating

1% / K at 40°C to 50°C

Additional Requirements

Anti-surge device and additional open contact in braking circuit

Shaft End

Cylindrical

Connector Type

Angular

Three-phase Servomotor

Yes

Shaft Type

Open keyway

Standstill Current

Refer to nameplate

Protection Class

Refer to nameplate

Winding Resistance

7.22 Ohms

Rated Power

Refer to nameplate

Mains Voltage

Refer to nameplate

Winding Inductance

26.8mH

Static Friction Torque

0.026Nm

Thermal Time Constant

17 minutes

Speed Rating

4,000min-1 at 480V
