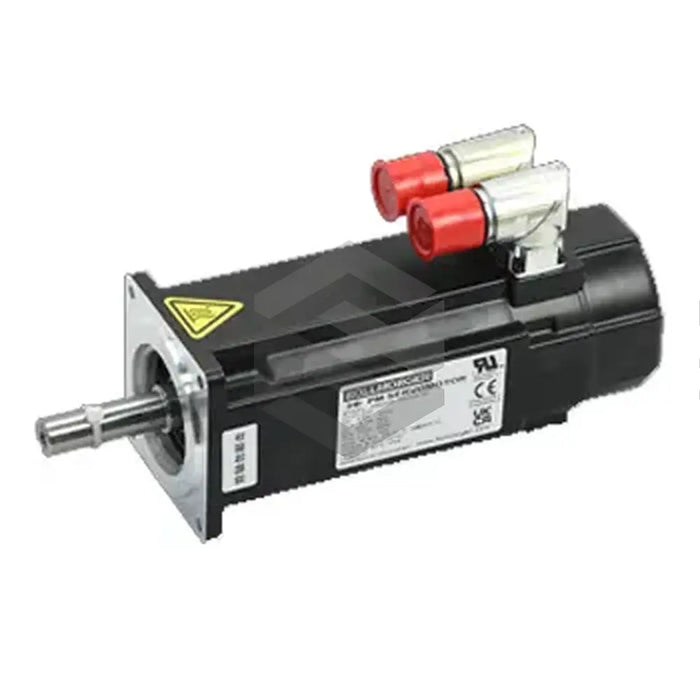

AKM43E-BKC2R-00

Original price $0.00 - Original price $0.00
Original price
Request a Quote
$0.00 - $0.00
Current price Request a Quote

Request a quote

Add a Message
The AKM43E-BKC2R-00 is a highly efficient synchronous motor from Kollmorgen's AKM series, renowned for its brushless servomotors used worldwide in automated machinery, robotics and CNC machines. With its lightweight design, this model has an 84mm flange size that is NEMA standard-compliant. Its three-stack rotor hosts a high-performance rare-earth neodymium-iron-boron magnet, facilitating multiple voltage inputs and providing high energy at low voltage. It can generate up to 1.18 kW power, reaches a rated speed of 3000 RPM and offers a peak torque of 15.9 Nm at 7500 RPM. A rotatable angular connector is on top of the motor for power and feedback connection. The unit also possesses an open-keyway shaft, a 24Vdc electrically-released holding brake applying 6Nm torque, and an F-class winding that withstands temperatures up to 155 degrees Celsius for smooth, reliable operations.

Contact Us

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Motor Type


Brushless Servomotor

Brand


Kollmorgen

Series


AKM

Model


AKM43E-BKC2R-00

Flange Size


84mm

Mounting Flange Standard


NEMA

Rotor Type


Three-stack

Rotor Material


Neodymium-Iron-Boron

Input Voltage Options


Yes

Input Voltage for Rated Specs


480V

Rated Power


1.18 kW

Rated Speed


3000 RPM

Rated Torque


3.76 Nm

Maximum Speed


7500 RPM

Peak Torque


15.9 Nm

Shaft Type


Open Keyway

Connectors


4+4 pole (power), 12-pole (feedback)

Feedback Type


Built-in Resolver

Holding Brake


24Vdc, Electrically-released

Holding Torque


6 Nm

Winding Class


F-class

Max Winding Temperature


155 Degrees Celsius.
