AKM51E-ANCNC-00

Request a quote

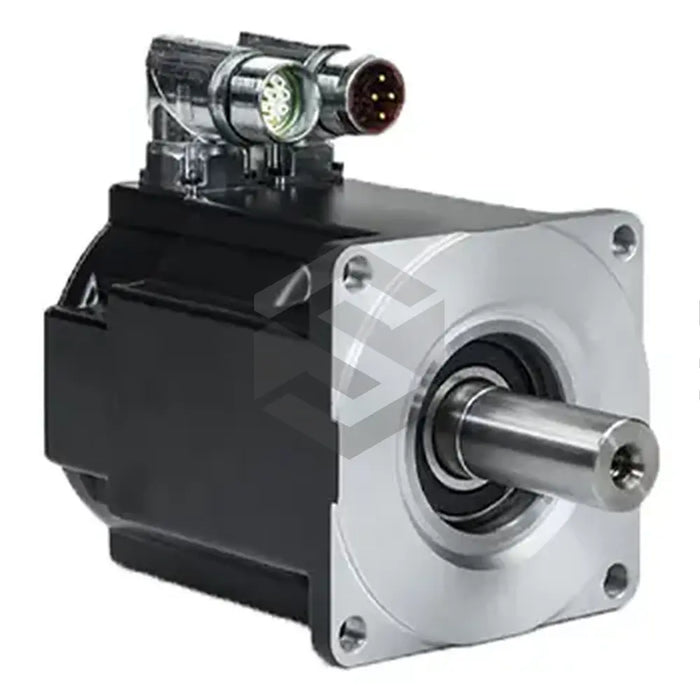

The AKM51E-ANCNC-00 is a brushless servo motor in the AKM series made by Kollmorgen. This sophisticated part offers high motor density, making it ideal for industrial robots, packaging and textile machinery, and machine tools. Optimized to perform with AKD series Kollmorgen servo drives for speed and torque control, this motor is built with thermal sensors in its windings, enabling accurate monitoring and managing of interior temperatures. With a frame size of 108 mm, a smooth shaft, and standard customizations, it also includes a single turn smart feedback device for precise positioning. The AKM51E-ANCNC-00 is fitted with two swiveling, angular connectors designed to resist dust and low-pressure water jets (IP65 rating). Ideally, the part should be installed and function within temperatures of 5°C-40°C and at an altitude below 1000m; the power will derate if used at higher altitudes. It tolerates up to 95% relative humidity, without condensation.
30 Day Warranty
Technical Specifications
  • Product Type: Kollmorgen Brushless Servo Motor
  • Model: AKM51E-ANCNC-00
  • Series: AKM
  • Mounting Environment: Prohibited in environments with dust, vapors, bases, acids, and oils
  • Frame Size: 108mm
  • Shaft Type: Smooth
  • Customization: Standard Factory
  • Feedback Device: Generation two single turn smart feedback device
  • Connectors: Two angular, rotatable
  • Protection Rating: IP65
  • Optimum Operating Environment: 5°C - 40°C, altitude not exceeding 1000 meters
  • Relative Humidity: Up to 95% without condensation
  • Power Deration Details: By 17% at 3000m, 30% at 4000m, and 55% at 5000m
