AKM54K-ACCN1-01

Original price $0.00 - Original price $0.00
Original price
Request a Quote
$0.00 - $0.00
Current price Request a Quote

Request a quote

Add a Message

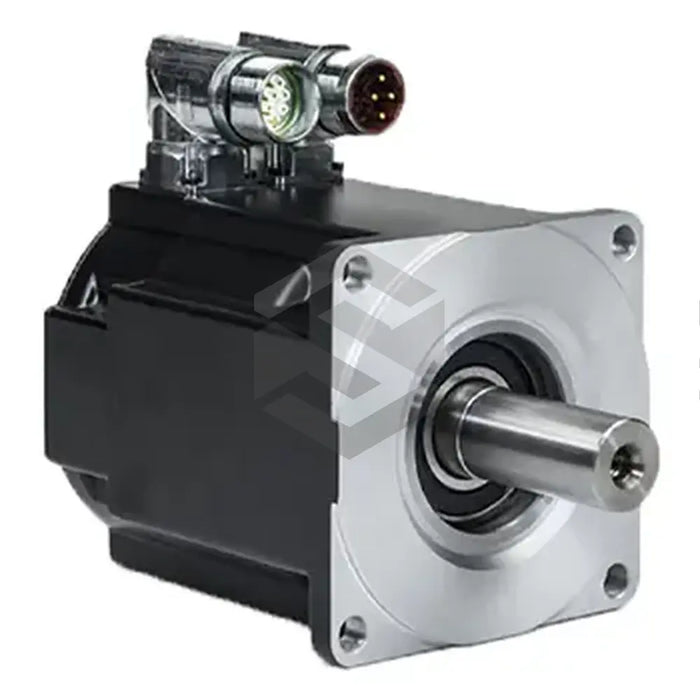

The Kollmorgen AKM54K-ACCN1-01 is a synchronous servomotor from the AKM series, designed to be used with a Kollmorgen SERVOSTAR servo amplifier in torque or speed control applications. It requires a maximum mains voltage of 480VDC and must be grounded to a protective switch cabinet busbar. The device features a size 5 flange, a rotor length of 4, and a K-type winding. The motor has a stationary torque of 14.4Nm and a stationary current of 9.7A. Special care should be taken as the device may have live power connections even when not in operation. This servo motor with 10 pole pairs and a keyway shaft with a shaft seal operates at high dynamics requirements and incorporates a thermal sensor for periodic motor winding temperature monitoring. Its rotor moment of inertia is 12 kg/cm2, and it should not be connected directly to the mains supply or exposed to shocks, particularly at the shaft end.

Contact Us

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer


Kollmorgen

Product Type


Synchronous Servomotor

Product Model


AKM54K-ACCN1-01

Series


AKM

Compatible Amplifier


SERVOSTAR

Voltage Rating


480VDC

Housing Specifications


Must be earthed to protective busbar

Flange Size


5 (IEC Standards)

Rotor Length


4

Winding Type


K

Standstill Torque


14.4Nm

Standstill Current


9.7A

Rotor Moment of Inertia


12 kg/cm2

Pole Pairs


10

Shaft Type


Keyway shaft with shaft seal

Use & Monitoring


high dynamics requirements & Temperature sensors for monitoring windings temperature.
