P image of AKM54K-ACCNR-01

AKM54K-ACCNR-01

by Kollmorgen
$0.00 - $0.00
Request a Quote
$0.00 - $0.00
Request a Quote

Request a quote

Add a Message

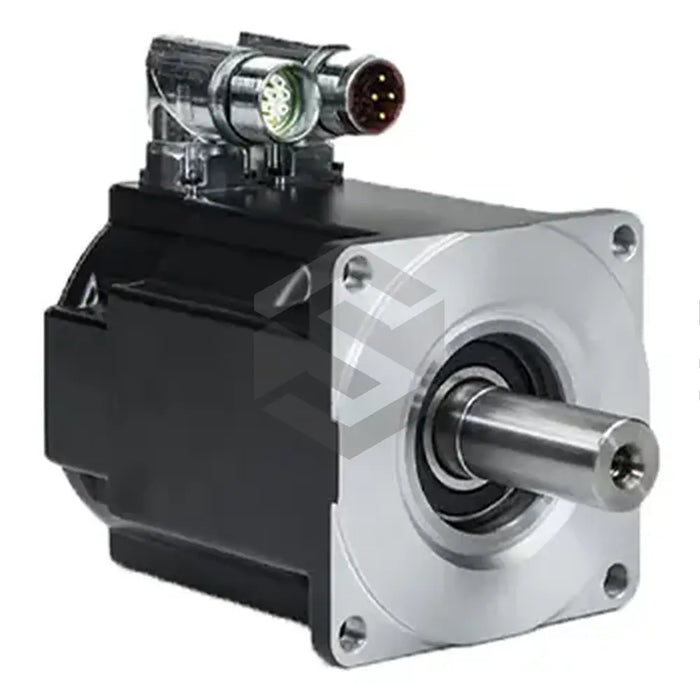

The AKM54K-ACCNR-01 is a servomotor produced by Kollmorgen, a member of the AKM series. It operates in unison with a digital SERVOSTAR servoamplifier. The motor utilizes frictionally-locking, backlash-free couplings or collets which must be meticulously aligned to prevent damaging vibrations. The servomotor has a static friction torque of 0.077Nm and demands careful servoamplifier configuration, considering the number of poles present in the motor and resolver. Additionally, the servomotor must avoid axial loads on the shaft to ensure longevity. It is necessary to have proper grounding for the motor, servoamplifier, motor casing, and mounting plate. Importantly, the motor cable must respect the current output rating of the servoamplifier and cross-section according to EN 60204 specifications. Preassembled shielded cables, deliver power and resolver connections and are made of a durable polyurethane sheathing. Finally, in multi-axis systems, separate commissioning of the servomotor and servoamplifier is required.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

2 - 4 Days
Handling Time

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Kollmorgen

Product Line

AKM series

Product

AKM54K-ACCNR-01 servomotor

Mandatory Coupling Type

Frictionally-locking and backlash-free couplings

Static Friction Torque

0.077Nm

Required Cable Distance

Minimum 20cm apart

Grounding Requirement

Motor casing, mounting plate, and motor itself

Power cable's cross-section according to

EN 60204 specifications

Motor cable max diameter (for Servoamplifier Output 1-6A)

4 x 1mm2

Insulating Material

Polyurethane

Lifetime

One million bending cycles

Commissioning

Servomotor and servoamplifier are commissioned individually

Common Issues

Oscillation due to high amplifier gain or break in resolver cable shielding.
