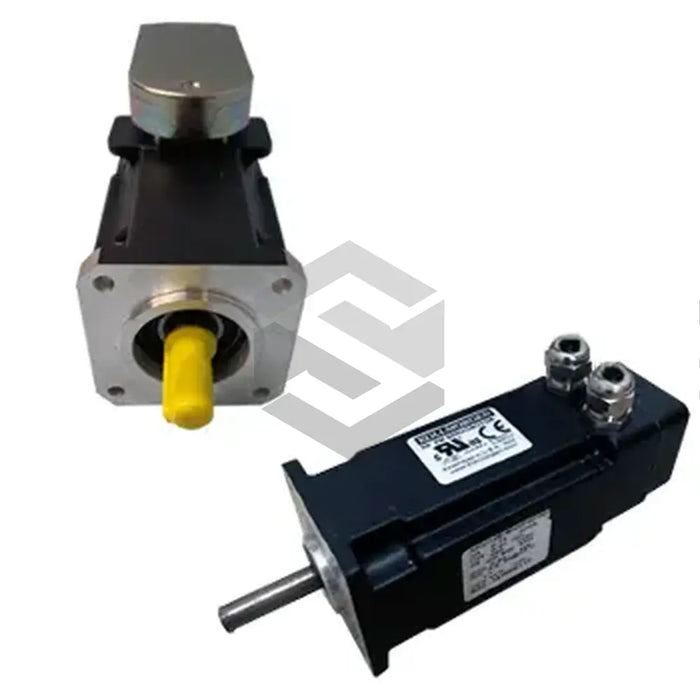

series image of AKM54L-CCC2LB00

AKM54L-CCC2LB00

by Kollmorgen
Request a quote
The AKM54L-CCC2LB00 is a DC synchronous servomotor developed by Kollmorgen, specifically designed for servo applications. The device features a permanent magnet rotor, a keyway shaft, and a 24V holding brake, with direct control via a servo amplifier. Presented in a matt black polyester powder coating, the motor weighs 9 kg and comprises a flange size of 108 mm and a 4-length rotor with L type winding. It endures a radial load of 450 N while operating at 3000 per minute and demonstrates a peak current of 37.5 A and torque of 37.5 Nm. The maximum bus voltage is 640 VDC. Operators must exercise caution due to the motor surface potentially exceeding 100°C. The motor housing should be earthed to the PE busbar with careful attention to the voltage since the motor could carry voltage even when not rotating. This product is not suitable for environments with explosive materials or electrically conducting substances.
30 Day Warranty
Technical Specifications
  • Manufacturer: Kollmorgen
  • Product Type: Synchronous DC Servomotor
  • Design: Rotor with Permanent magnets
  • Finish : Matt black polyester powder coating
  • Feature: Keyway shaft
  • Additional Feature: 24V Holding Brake
  • Standard Weight: 9 kg
  • Flange Size: 108 mm
  • Rotor Length: 4
  • Type of Winding: L Winding
  • Permitted Radial Load: 450 N at the shaft end at 3000 per minute with a tolerance of +/- 10%
  • Peak Current: 37.5 A
  • Peak Torque: 37.5 Nm
  • Maximum Bus Voltage Rating: 640 VDC
  • Connection Type: Can be connected using three-phase network
  • Protection Category: Requires caution when handling due to hot surface
  • Operating Precaution: Housing must be earthed to PE busbar in switch cabinet
  • Voltage Warning: Motor voltage level may be present even if not displayed or rotating
  • Restricted Use: Prohibited in environments with explosive materials, electrically conducting bases, acids, vapors, oils, and dust.
