AKM63S-ASCSC-02

Original price $0.00 - Original price $0.00
Original price
Request a Quote
$0.00 - $0.00
Current price Request a Quote

Request a quote

Add a Message

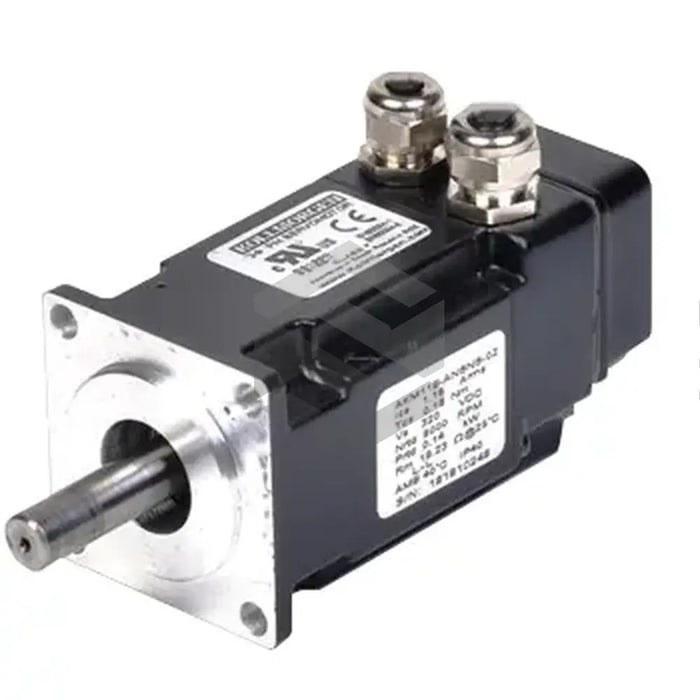

The Kollmorgen AKM family of motors has revolutionized factory floor operations by combining high performance motors with diverse feedback, connection, and mounting possibilities. The AKM motors offer a continuous stall torque of 0.16 N-m to 180 N-m across 28 frame-stack combinations and maximum speeds reaching 8000 RPM. One such model, the AKM63S-ASCSC-02, is a permanent magnet brushless servo motor with a holding brake to prevent unintentional shaft rotation. It comes in a 138-millimeter frame size with a special shaft and an IEC rated flange. The motor works best with Kollmorgen’s AKD series digital amplifiers, allowing quicker setup and operation. However, the motor is not suitable for explosive environments, food contact, or direct interaction with mains supply networks. It's best suited for machine tools, industrial robots, packaging and textile machinery, and other high-dynamic applications.

Contact Us

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer


Kollmorgen

Product Line


Kollmorgen AKM

Motor Type


Permanent Magnet Brushless Servo

Torque Range


0.16 N-m to 180 N-m

Frame-Stack combinations


28

Maximum Speed


8000 RPM

Model


AKM63S-ASCSC-02

Feature


Special Holding Brake

Frame Size


138 mm

Shaft Type


Special

Flange


IEC Rated

Amplifier Compatibility


Kollmorgen Digital Amplifiers(Kollmorgen AKD Series)

Application


Industrial Robots, Machine Tools, Packaging Machinery, Textile Machinery

Restrictions


Not for use in explosive areas, Direct food contact, Not to be directly interfaced with mains supply networks
