AKMH43E-BKV2CA3K
by Kollmorgen

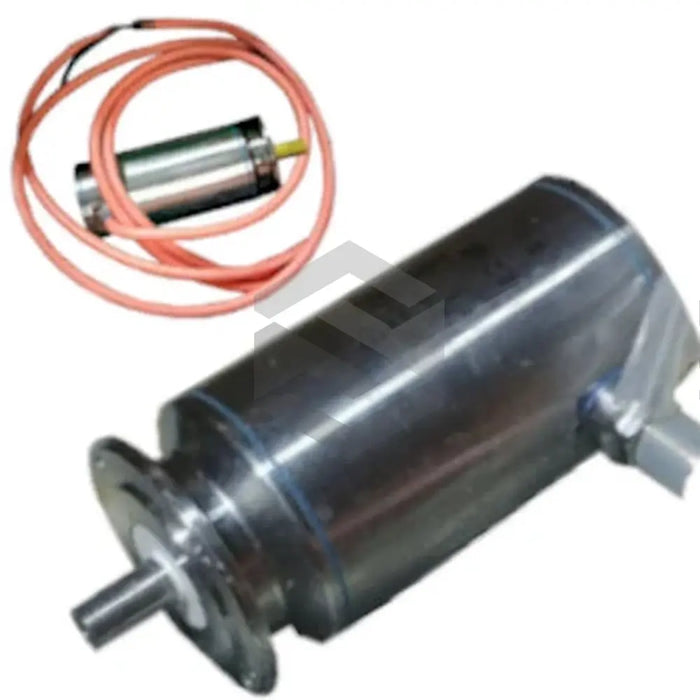

The Kollmorgen AKMH43E-BKV2CA3K hygienic stainless steel servo motor, part of the AKMH Stainless Servomotors series, delivers reliable power and precision motion control for industrial automation. With a rated torque of 6.2 Nm and rated power of 1.3 kW, this motor offers robust performance in demanding environments. Its IP69K protection class ensures complete resistance to high-pressure washdowns and sterilization processes, making it ideal for applications requiring stringent hygienic requirements. Designed for driving mixers, fillers, and packaging machines, the AKMH43E-BKV2CA3K provides the precise speed and torque control essential for food, beverage, and pharmaceutical production.
Equipped with a 316L stainless steel housing, the AKMH43E-BKV2CA3K meets FDA-approved material specifications to prevent corrosion and contamination. It operates at a rated speed of 3000 rpm on 230 V AC power, while a built-in holding brake secures loads during stops and maintenance. The motor’s Absolute EnDat 2.2 feedback system offers high-resolution position sensing, enhancing control accuracy and repeatability. A pre-wired cable connector (2 m length) simplifies installation and reduces potential leak paths, while the compact frame size 43 (approx. 110 mm diameter) maintains a small footprint in equipment designs.
Designed for durability and compliance, the AKMH43E-BKV2CA3K carries CE certification, is cUL recognized, and RoHS compliant. The motor’s hygienic exterior resists aggressive cleaning agents and meets IP69K washdown standards, ensuring long-term reliability in wet or caustic environments. Installation is limited to a horizontal position to maintain optimal bearing life and seal integrity. By integrating this servo motor into industrial automation systems, users benefit from enhanced process efficiency, reduced downtime, and simplified maintenance in applications where cleanliness and performance are paramount.
