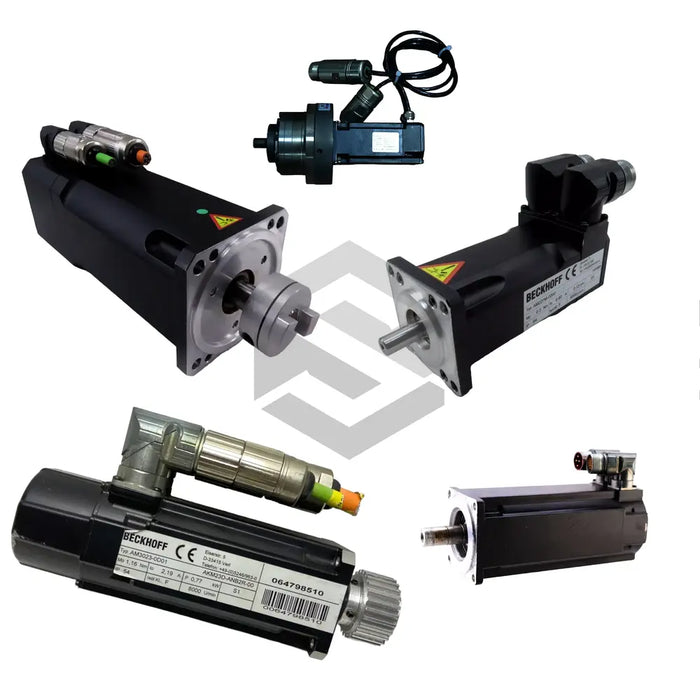

AM3031-0C30-0000

The Beckhoff AM3031-0C30-0000 synchronous servo motor from the AM Synchronous Servo Motors series delivers a combination of high dynamics and industrial-grade durability for precision automation applications. With an incremental encoder type offering 1024 pulses per revolution, the AM3031-0C30-0000 achieves accurate position feedback across a wide range of motion profiles. The motor’s design supports both vertical and horizontal mounting and incorporates proper earthing provisions in its housing to ensure operational safety and electromagnetic compatibility. Its compact form factor, featuring a 72 mm flange and a mass of 1.5 kg, enables integration into tight machine modules while minimizing inertial loads. The absence of a holding brake simplifies mechanical coupling and reduces overall system complexity.

The motor’s detailed technical specifications define its capabilities and installation requirements. It supports a max rotational speed of 6000 rpm under a supply voltage range of 10...30 VDC and generates an HTL (High Threshold Logic) output signal to interface with digital servo drives. The housing, made of aluminum, provides an IP65 protection class that safeguards the internal components against dust and water ingress in harsh industrial environments. Radial cable entry coupled with an M12 connector simplifies field wiring and ensures reliable electrical connections. A shaft diameter of 10 mm with a smooth finish allows for secure coupling to gearboxes or load shafts using a locking thread on the shaft keyway. The motor features a built-in PTC temperature sensor rated at 155 °C ±5% to support overtemperature monitoring and drive-level safety interlocks.

Operational features of the AM3031-0C30-0000 emphasize robust performance under varying load and environmental conditions. The lightweight rotor, equipped with permanent magnets and a single stack, delivers low inertia for rapid acceleration and deceleration cycles. The BISS incremental encoder ensures single-turn position feedback without the need for additional homing procedures, enhancing machine uptime and simplifying commissioning. The unit’s operating temperature range of -40°C to +85°C ensures reliable operation from freezer storage to high-heat production lines, while the IP65 rating allows for straightforward washdown cleaning with isopropanol in hygienic applications. Proper ventilation at the installation site is necessary to dissipate heat generated during continuous high-speed operation.

System integration of the Beckhoff AM3031-0C30-0000 is straightforward when paired with compatible digital servo drives, enabling torque and speed control loops in centralized or decentralized automation architectures. The motor’s C-type winding configuration supports both torque-controlled and speed-controlled modes, making it suitable for pick-and-place units, rotary indexing tables, and conveyor tensioning systems. The combination of precise encoder feedback, high rotational speed capability, and industrial protection features positions this servo motor as an optimal choice for packaging machinery, semiconductor equipment, and collaborative robotics applications.
