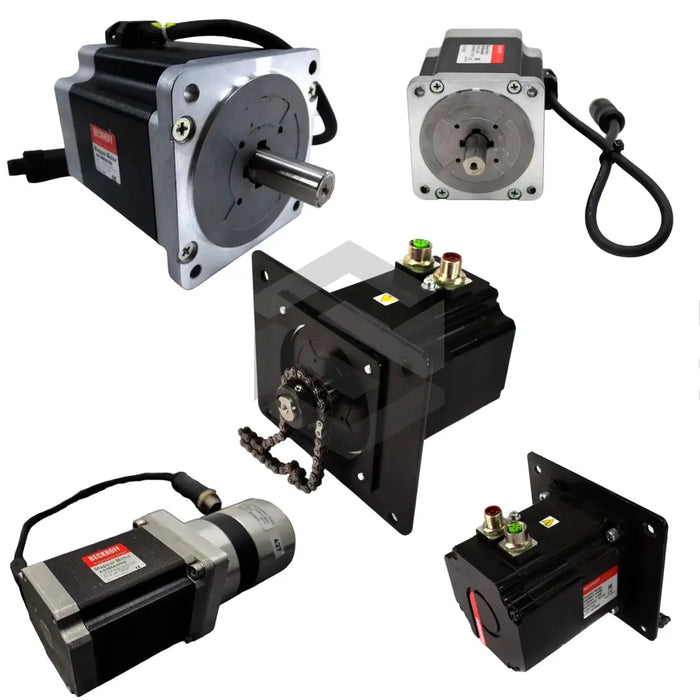

series image of AS1060-0000

AS1060-0000

by Beckhoff
$990.00 - $990.00
$990.00
$990.00 - $990.00
$990.00
In Stock, Ships Today
The AS1060-0000 is a stepper motor from Beckhoff, part of the AS1000 series, known for its robust performance. It provides a holding torque of 5 Nm and features a compact build with an internal shaft diameter of 30 mm, a NEMA34 external flange, and a shaft length of 96.5 mm. Its dimensions are optimized for tight spaces, measuring 73 mm in body width, 14 mm in height, and 33 mm in depth, with a mounting pitch of 85.5 mm and a shaft tip length of 24 mm. The motor supports horizontal and vertical installation in IM B5, IM V1, and IM V3 orientations, though care is needed in IM V1 and IM V3 to prevent liquid ingress. The motor can be equipped with an incremental encoder requiring a 24 V DC supply. Adherence to ISO standard J7 and DIN specifications ensures compatibility with toothed belts and backless coupling solutions.
30 Day Warranty
Technical Specifications
  • Manufacturer: Beckhoff
  • Model: AS1060-0000
  • Family: AS1000
  • MotorType: Stepper Motor
  • HoldingTorque: 5 Nm
  • ShaftDiameter: 30 mm
  • ExternalFlange: NEMA34 (86 mm)
  • ShaftLength: 96.5 mm
  • BodyWidth: 73 mm
  • BodyHeight: 14 mm
  • BodyDepth: 33 mm
  • MountingPitch: 85.5 mm
  • ShaftTipLength: 24 mm
  • IncrementalEncoder: 1024 increments
  • EncoderSupplyVoltage: 24 V DC
  • FlangeTypeForFixing: B5, V1, V3
  • MountingOrientation: Horizontal, Top Vertical
  • FlangeDimensionsStandard: ISO (J7)
  • AccuracyStandard: DIN 43672
  • InstallationRequirements: IM B5, IM V1, IM V3
  • LoadSupport: Radial Pinion Belt, Toothed Belts
  • PreferredCoupling: Double Coned Collet, Metal Bellows Coupling
