AT2041-0250
by Beckhoff

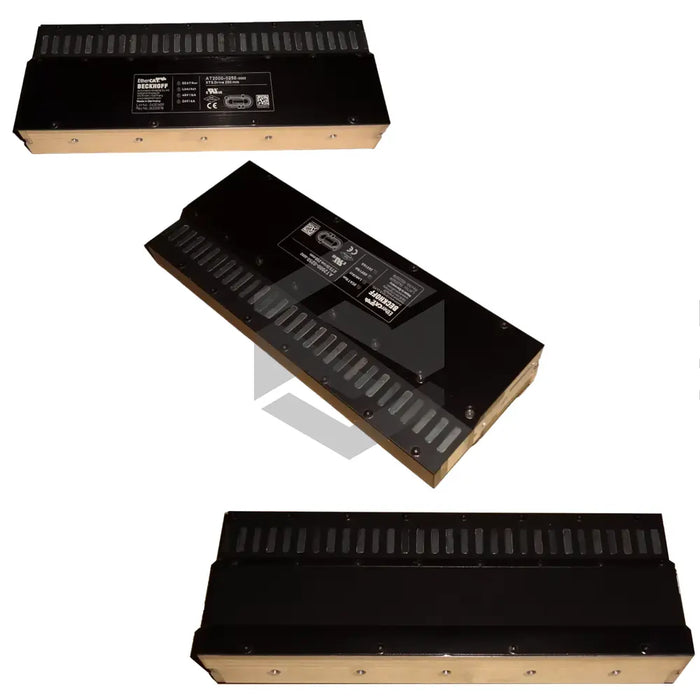

The AT2041-0250 from Beckhoff is an integral part of the AT XTS Starters series and exemplifies advanced design techniques in modern linear motor applications. The module is built around a long stator linear motor segment with a distinctive curved segment, 45° design, ensuring precise motion control aligned with the Beckhoff eXtended Transport System (XTS). With a peak force of 210 N and an operating ambient temperature range of 0 to +40°C, this unit is optimized for industrial automation setups where space and precision are at a premium. Its design benefits from a fixed 5-meter cable, which enhances power and communication reliability while supporting system scalability and minimal spatial constraints.
Engineered to meet rigorous technical requirements, the AT2041-0250 module incorporates a 250 mm motor length that allows exact shaping of supply segments within a comprehensive XTS arrangement. Key technical details include a control voltage of 24 V DC -15/+20%, ensuring robust response under varied conditions and a power consumption rate of 30 W per meter travel distance for efficient energy usage. Moreover, the module’s structure, including a convection cooling system and a fixed connection method via a permanent 5 m cable, distinguishes it as a reliable choice in demanding operational environments.
Further enhancing its appeal for industrial use, the AT2041-0250 offers compact dimensions of Length: 258.9 mm, Width: 39.1 mm, and Height: 114.4 mm, while maintaining a lightweight profile of 3.0 kg for easy integration. It also operates at an operating voltage of 48 V DC, consistent with high performance low voltage systems. The inclusion of a CE Approved certification underscores its adherence to stringent European safety standards. This combination of durability, precise engineering, and adherence to industry norms makes the AT2041-0250 a beneficial component in enhancing the efficiency and safety of automated transport and conveyor systems.
