S image of AX2090-BW51-3000

AX2090-BW51-3000

by Beckhoff
$1,575.64 - $2,500.00
$2,500.00
$1,575.64 - $2,500.00
$2,500.00

In Stock, Ships 1 - 3 Days

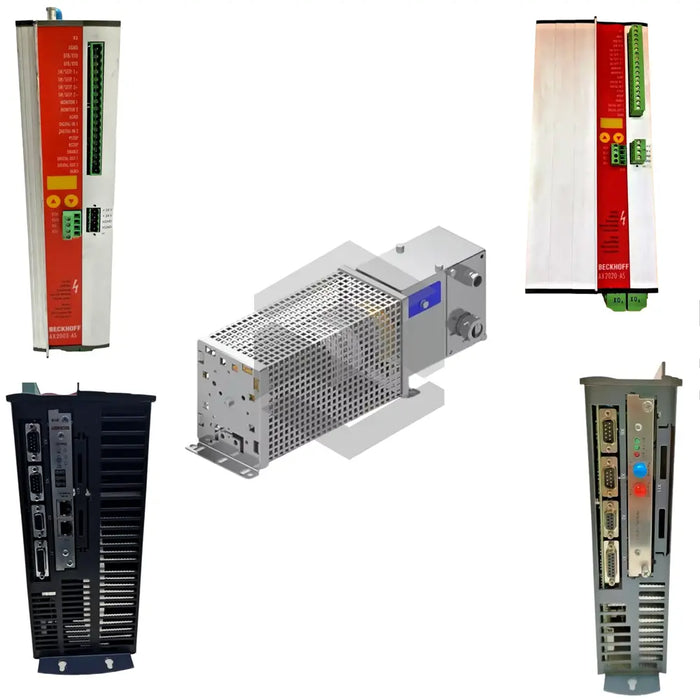

The AX2090-BW51-3000 braking resistor from Beckhoff’s AX Digital Servo Drives series features a 3 kW rating and is compatible with AX5118, AX5125, AX5140, and AX5021 units. It weighs 8 kg, provides 23.4 Ω resistance, holds 705 µF buffer capacitance, and delivers up to 6 kW continuous power with the AX5021. Dimensions are 355×255×490 mm and it mounts outside the control cabinet to avoid temperature spikes. An EtherCAT interface supports diagnostics and parameterization when regenerative energy exceeds the threshold.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

2 - 4 Days
Handling Time

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Activation condition

Activates when regenerative energy feedback into DC link exceeds threshold

Application

External braking resistor for AX5118, AX5125, AX5140, AX5021 units

Brake energy buffer capacitance

705 µF

Dimensions (W×H×D)

355×255×490 mm

Heat conversion

Converts brake energy to heat via voltage-controlled resistor

Installation

Mount outside control cabinet to avoid extra temperature rise

Interface

EtherCAT for parameterization and diagnostics

Max continuous output power

6 kW (with AX5021)

Power rating

3 kW

Recommended supply cable

ZK4000-2102-2zzz (2.5 mm²)

Resistance

23.4 Ω

Weight

8 kg
