AX5112-0000-0202

Original price $4,066.00 - Original price $4,066.00
Original price
$4,066.00
$4,066.00 - $4,066.00
Current price $4,066.00
In Stock, Ships 1 - 2 Days
Request a quote

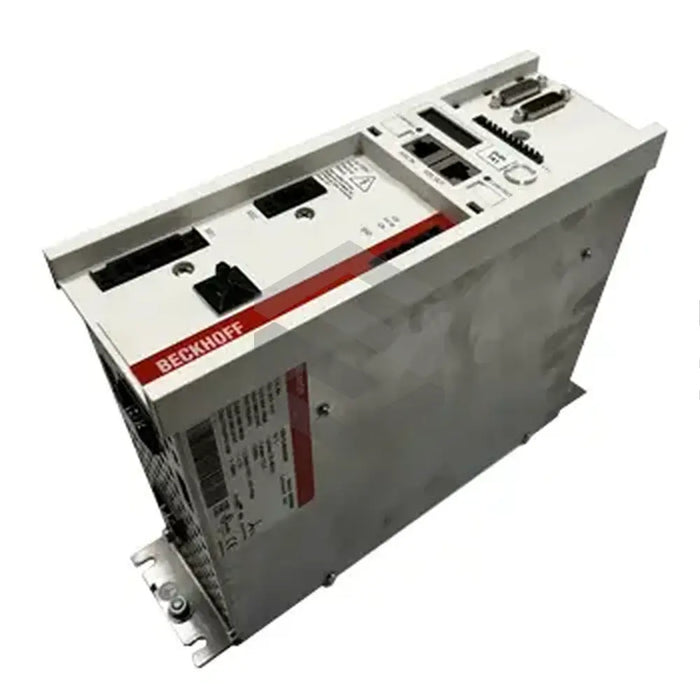

The AX5112-0000-0202, part of Beckhoff's AX5000 series, is a single channel servo drive built for positioning precision and speed control in numerous motor types - synchronous, asynchronous, linear, and torque. This servo drive functions optimally as an integral component of an electrical apparatus or machine, and operates best when installed vertically inside a control cabinet, under temperate environmental conditions. Notably, without proper housing, usage is discouraged in aggressive environments or ATEX zones. This device interfaces with an EtherCAT system bus, facilitating speedy, dynamic positioning tasks. With a standard hardware build, it has a 12A rated current and an impressive temperature adaptability range (-25 to 70 degrees for storage, 0 to 50 degrees during operation). Secondary attributes include a 26A peak output current, 90W maximum continuous braking power, and a 116W power load. Offering optional safety-layer functionality, this compact device is designed for easy installation in control cabinets.
30 Day Warranty
Technical Specifications
  • Manufacturer: Beckhoff
  • Product Series: AX5000
  • Product Model: AX5112-0000-0202
  • Control Type: Speed, Torque, and Position Control
  • Suitable Motors: Synchronous, Asynchronous, Linear, and Torque Motors
  • Channels: Single
  • System Bus: EtherCAT
  • Operating Temperature: 0 to 50 degrees
  • Storage Temperature: -25 to 70 degrees
  • Maximum Altitude: 1000 meters above sea level
  • Installation Position: Vertical
  • Protection Class: IP 20
  • Rated Current: 12A
  • Maximum Output Current: 26A
  • Rated Supply Voltage: 3 x 100 … 480VAC
  • Peak Output Current: 26A
  • Continuous Braking Power: 90W
  • Weight: 5Kg
  • Power Load: 116W
  • Additional Features: Compact Design, Optional Restart Lock and TwinSAFE Safety Functions
