AX5112-0000-0200

Original price $5,057.85 - Original price $5,057.85
Original price
$5,057.85
$5,057.85 - $5,057.85
Current price $5,057.85
In Stock, Ships 1 - 2 Days
Request a quote

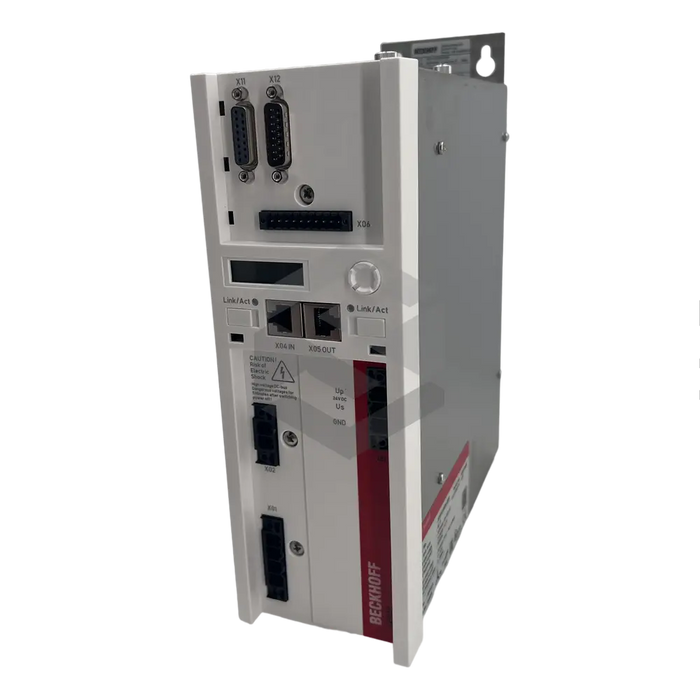

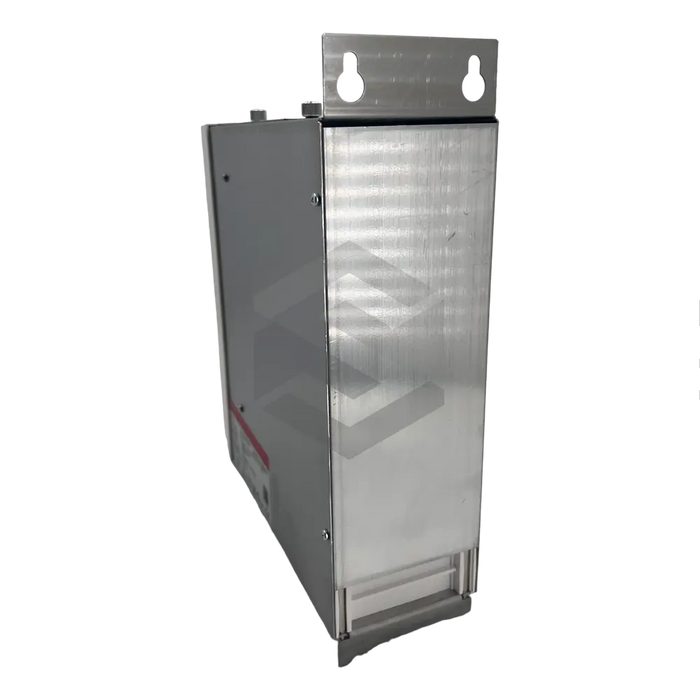

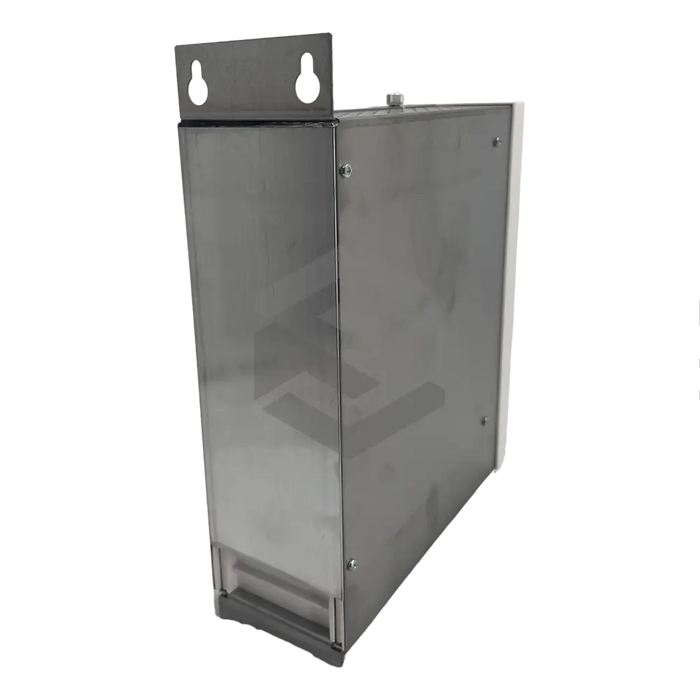

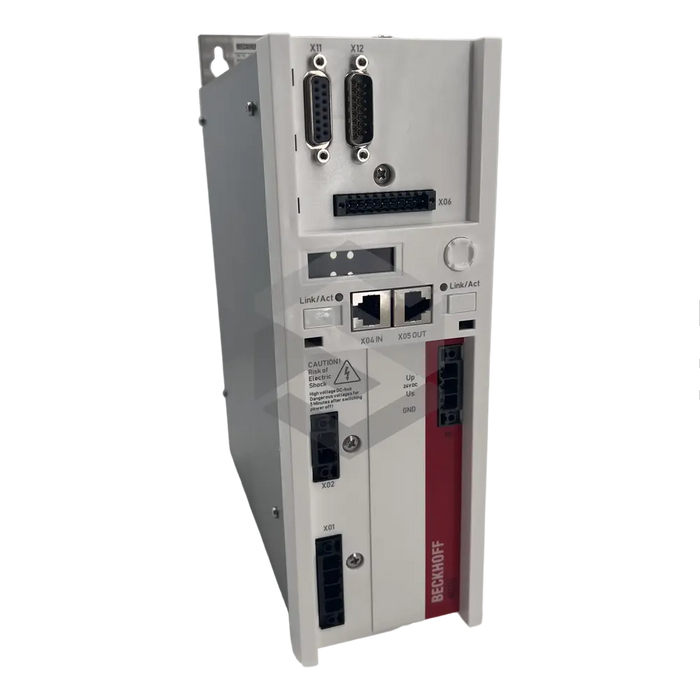

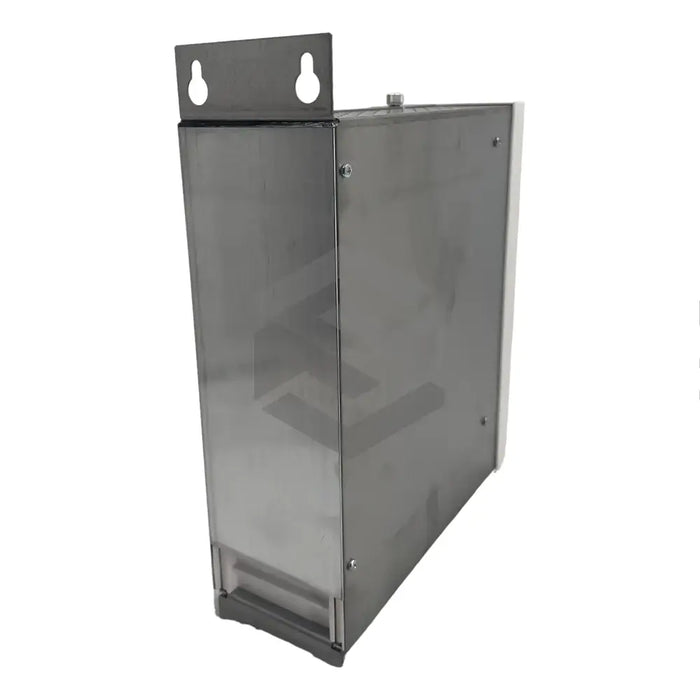

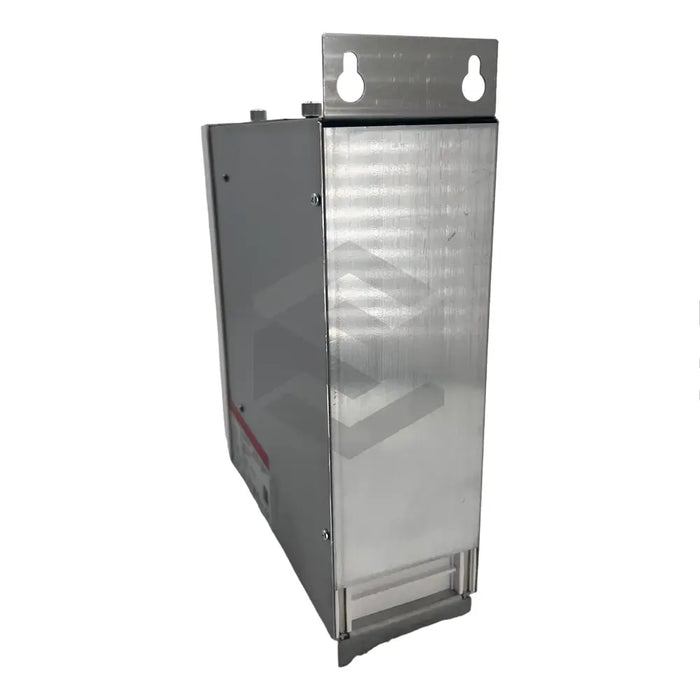

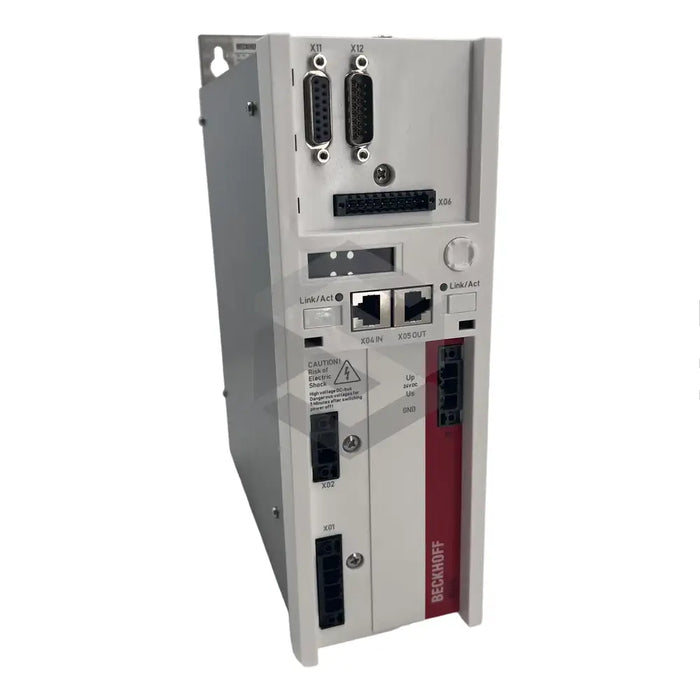

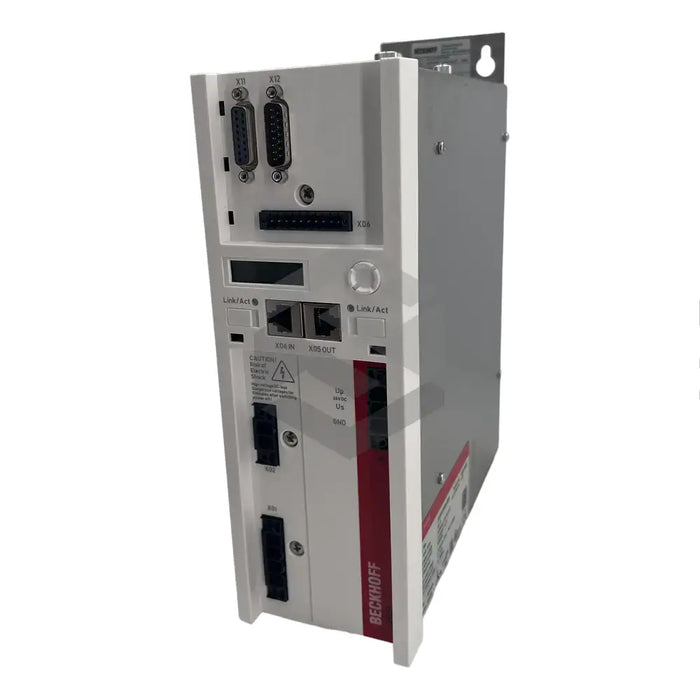

The Beckhoff AX5112-0000-0200 is a high-performance servo drive that falls under the AX5000 product range. This servo drive is compatible with several motor types such as synchronous, asynchronous, linear, and torque for precise control over torque, speed, and position. With EtherCAT system bus integration, it achieves efficient performance even in networks with multiple devices. Besides its wide voltage range, this servo drive ensures high-speed system communication for better data exchange, and provides parameter & diagnostic display for adjustable settings. The device includes an AX-Bridge for quick control voltage, power supply, and DC-link connections. It employs an effective cooling system for optimal heat dissipation and includes safety features like a restart lock. Designed compactly weighing at 5kg, this product has a power loss of 160W and maximum braking power of 14kW. The device requires vertical installation in a control cabinet and operates best at an altitude of 1000m above sea level with 5% to 95% non-condensing humidity.
30 Day Warranty
Technical Specifications
  • Product: Beckhoff AX5112-0000-0200 Servo Drive
  • Family: AX5000
  • Compatible Motors: Synchronous, Asynchronous, Linear, Torque Motors
  • System Bus: EtherCAT
  • Voltage Range: Wide
  • Communication: High-Speed System
  • Display: Parameters and Diagnostic Display
  • Connector: Integrated AX-Bridge
  • Cooling Method: Optimized
  • Safety Features: Optional (e.g. Restart Lock)
  • Weight: 5kg
  • Power Loss: 160W
  • Max Braking Power: 14kW
  • Rated Output Current: 12A (at 50 degrees)
  • DC-Link Voltage: Max 890VDC
  • Peak Output Current: 26A
  • Protection Category: IP20
  • Installation: Vertical (within Control Cabinet)
  • Operating Altitude: Up to 1000m above sea level
  • Pollution Degree: 2 (EN 60204)
  • Air Humidity Condition: 5% to 95% (no condensation)
  • Operating Temperature: 0 to 50 degrees
  • Storage and Transport Temperature: -25 to 70 degrees.
