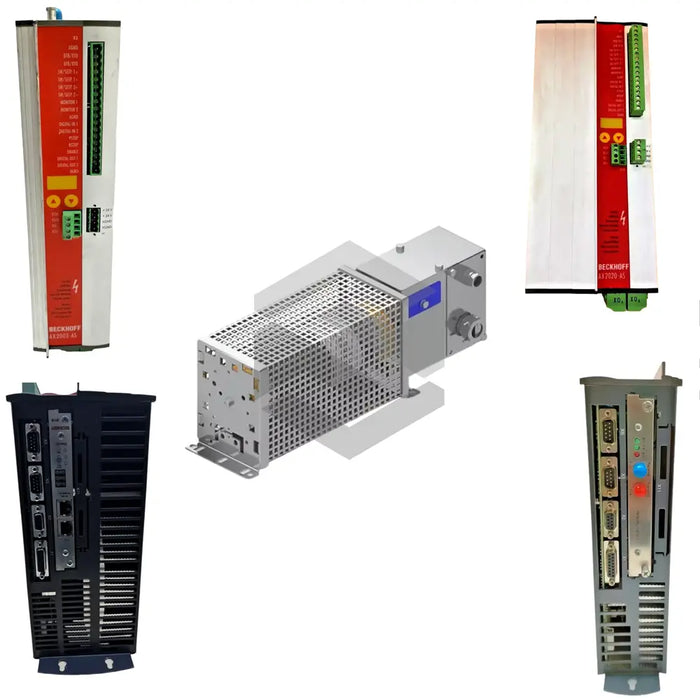

series image of AX5190-0000-0200

AX5190-0000-0200

by Beckhoff
$8,868.00 - $8,868.00
$8,868.00
$8,868.00 - $8,868.00
$8,868.00
Available, Shipping Varies
The Beckhoff AX5190-0000-0200 is a servo drive from the AX5000 series designed for optimal performance in various industrial applications. Its compact design allows for vertical mounting, requiring adequate ventilation for consistent airflow. The device offers a power dissipation of 1300W, a maximum braking power of 67kW, and a peak DC link voltage of 890VDC. with the rated supply voltage standing at 3 x 400-480VAC. The drive handles a peak output current of 180A and a rated output current of 90A. An auxiliary fan is included for enhanced cooling. This single-channel version complies with IP 20 protection standards and can operate without diminished power at elevations up to 1000 meters. Ideal operating ambient temperature ranges from 0 to 40 degrees, while storage temperature varies between -25 to 55 degrees. For optimum functionality, the drive requires pairing with the EtherCAT system. The device is intended for torque, speed, and positional control of multiple motor types and is not designed for standalone operation.
30 Day Warranty
Technical Specifications
  • Manufacturer: Beckhoff
  • Product Series: AX5000 servo drives
  • Orientation: Vertical
  • Ventilation: Required
  • Power Dissipation: 1300W
  • Maximum Braking Power: 67kW
  • Maximum DC Link Voltage: 890VDC
  • Rated Supply Voltage: 3 x 400-480VAC
  • Peak Output Current: 180A
  • Rated Output Current: 90A
  • Cooling System: Auxiliary Fan
  • Version: Standard, Single Channel
  • Protection Category: IP 20
  • Operating Height: 1000 meters above sea level without reduced power
  • Pollution Degree: 2% according to EN 60664-1
  • Permissible Air Humidity: 15%-85%, no condensation
  • Ambient Operating Temperature: 0-40 degrees
  • Storage Temperature: -25 to 55 degrees
  • System Use: Conjunction with EtherCAT for dynamic positioning tasks
  • Stand-Alone Operation: Not designed for
  • Touch Safety Warning: Surfaces may exceed 50 degrees, do not touch shortly after operation
  • Designed Control Type: Torque, Position, Speed of several motors including linear motors
