AX5206-0000-0200

Original price $4,016.81 - Original price $4,016.81
Original price
$4,016.81
$4,016.81 - $4,016.81
Current price $4,016.81
In Stock, Ships Today
Request a quote

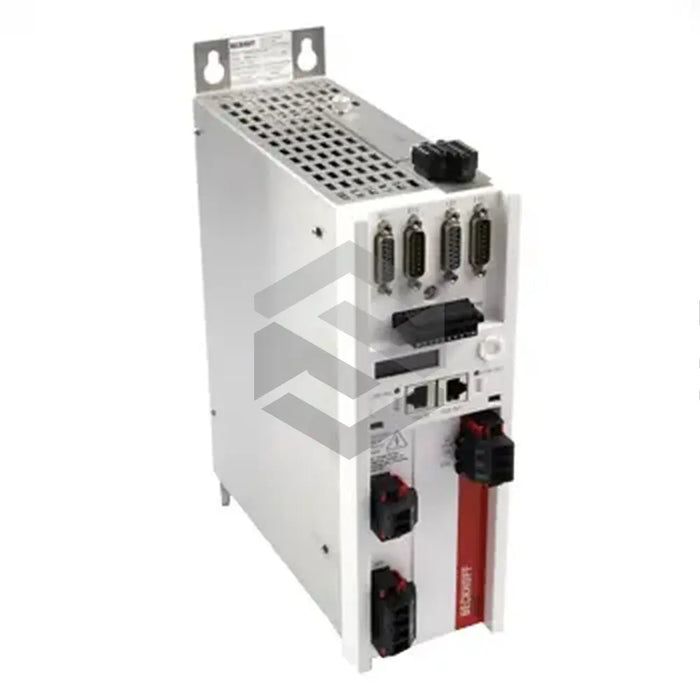

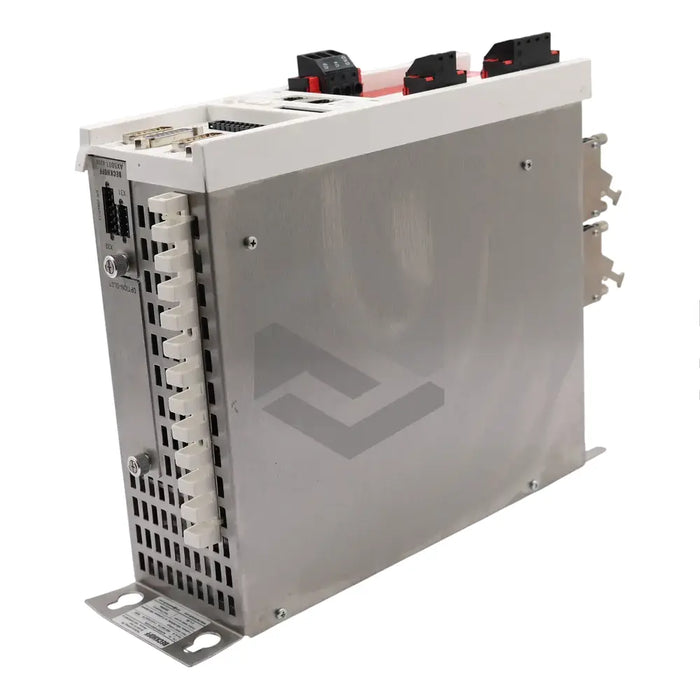

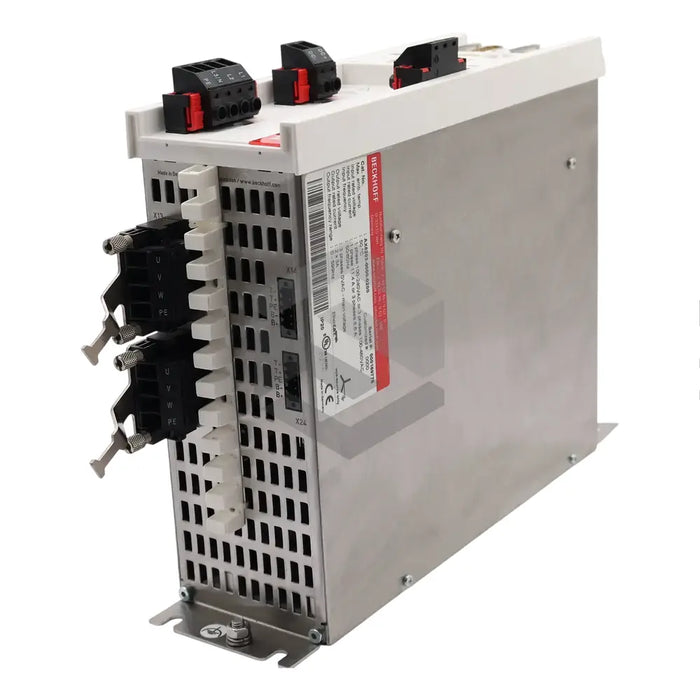

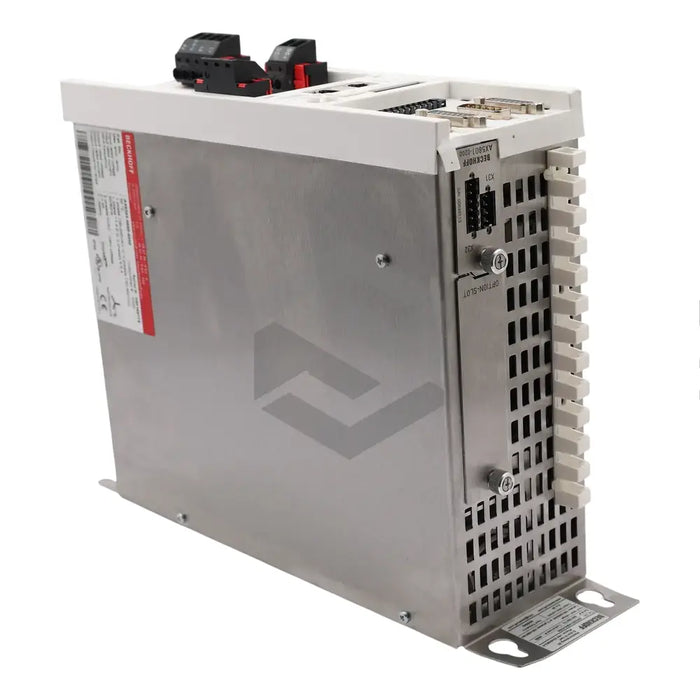

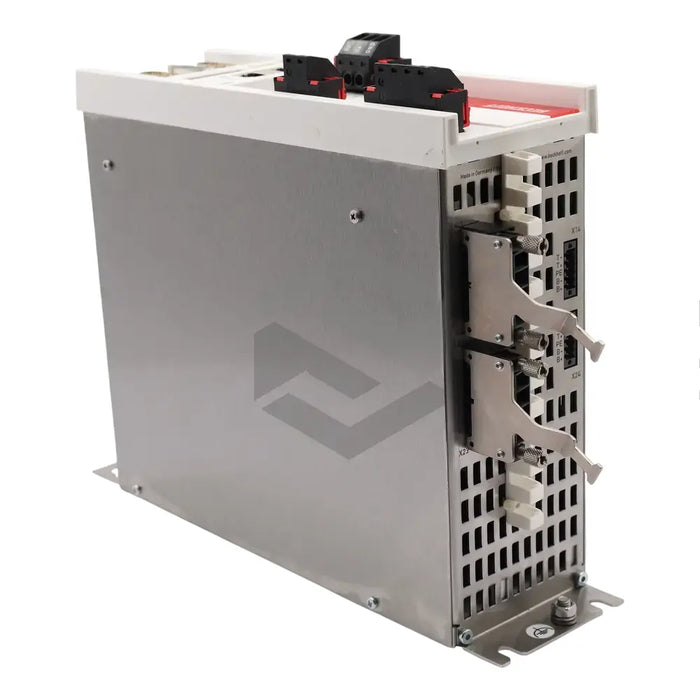

The AX5206-0000-0200 is a high-performing dual-channel digital compact servo drive from the AX5000 series by Beckhoff Automation GmbH. This robust and well-constructed product is flexible in motor selection and features an EtherCAT system allowing for effective PC-control interfacing. It boasts an Active DC-link, a brake energy management system, and a multi-feedback interface. Furthermore, it's equipped with a diagnostic and parameter display and several safety functions, including STO, a holding brake, and an intelligent TwinSAFE safety feature. For accidental restart protection, add-on components are available. It operates optimally between 0°C and 50°C. It possesses an AX-bridge providing fast connections for power supply, control voltage, and DC-link. With its effective cooling performance and compatible with a selection of accessories, this servo drive maintains top performance even under full load. The AX5206-0000-0200 is CE, EAC, cULus approved, boasts IP20 protection, and is recommended for vertical installation.
30 Day Warranty
Technical Specifications
  • Manufacturer: Beckhoff
  • Product Group: AX5000 series
  • Model: AX5206-0000-0200
  • Communication System: EtherCAT
  • DC-Link: Active
  • Energy Management System: Yes
  • Flexible Motor Type Selection: Yes
  • Multi-feedback Interface: Yes
  • Diagnostic and Parameter Display: Built-in
  • Safety Features: STO, Holding brake, Intelligent TwinSAFE safety
  • Operating Ambient Temperature: 0°C to 50°C
  • Connection System: AX-bridge
  • Hardware Version: 2.0
  • Firmware Version: 2.06
  • Accessories: AM80xx, AM88xx, TE5910, AX5021, and AX57xx
  • Approvals: CE, EAC, cULus
  • Protection: IP20
  • Recommended Installation: Vertical
